Phoenix Contact Ferrule Terminal, Gray, 16mm, AI0.75-10GY, 100 Pieces

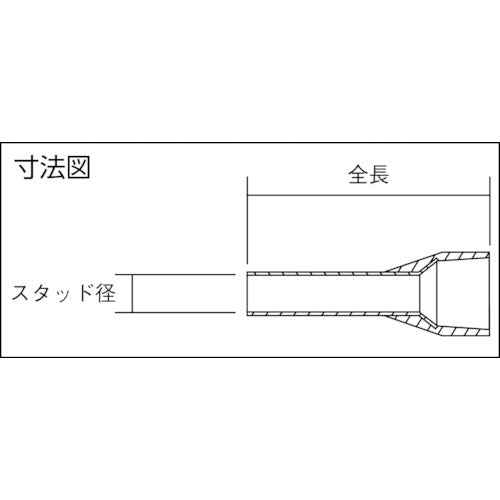

Catalog number: AI0.75-10GY Features: ● Made of flexible copper with a tin-plated surface. ● Provides high insulation even when wires are densely packed during wiring. ● Prevents the core wire from coming apart. ● The insulating sleeve is color-coded to help distinguish wire sizes. ● Prevents the core wire from coming apart, and improves reliability when inserted into a terminal block that supports single wires. Specifications: ● Wire compatibility range Stranded wire [MM2]: 0.75 ● Wire compatibility range AWG: 18 ● Color: Gray ● Total length (mm): 16 ● Stud diameter (mm): 1.3 ● JIS standard product: DIN standard product ● Cross-sectional area: 0.34 mm [squared] ● AWG (mm): 22 Material/Finish: ● Metal part: E-CU (tin-plated) ● Insulating sleeve: Polypropylene (UL94HB)
