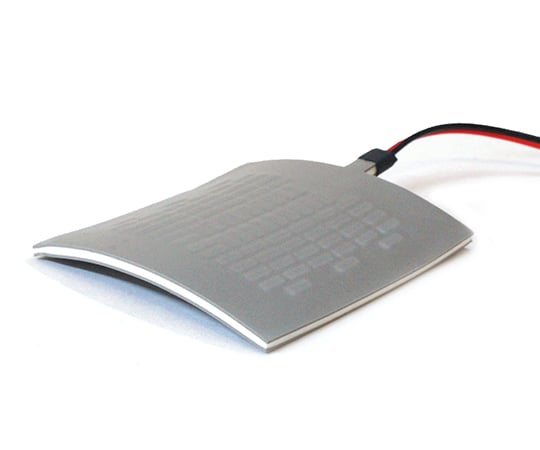

Flexible Peltier module AR-TEM-es-02 1 piece

This is a "soft" Peltier device that combines an existing Peltier element with rubber. It is possible to bend (minimum mounting diameter φ50mm), which was not possible with conventional ceramic Peltier devices. The use of rubber has made it possible to achieve significant weight reduction (40% lighter than general ceramic products). It has excellent durability against drop impact (withstands a free fall of 1.5m). It has a completely sealed structure that makes it difficult for water to enter. Heating and cooling can be achieved through electrical control alone. It can be attached to curved surfaces up to φ50mm. This is a flexible thermoelectric device that consists of a Peltier device sealed in rubber. Basically, it can be used in the same way as a conventional ceramic Peltier device. Material: Thermally conductive silicone rubber (front and back) Size: 50 x 50 x 2.15 mm Temperature control unit size: 37.8 x 32.2 mm Operating temperature range: up to 100℃ Maximum current: 3.99A Maximum voltage: 11.2V Maximum temperature difference: 52.1℃ Maximum heat absorption: 19.5W Rated load: 1.5MPa Flexibility: φ50mm Weight: 9.5g
