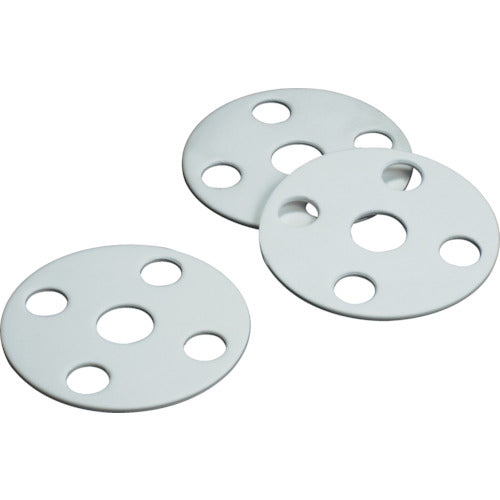

Fluorochemical Fluorine Resin (PTFE) Flange Packing JIS-5K 20A NR2120-009 1 piece

Catalog number: NR2120-009 Features: ●The flange diameter and bolt hole diameter are in accordance with the JIS standard size (with bolt holes), so it can be attached to an existing flange. ●Made entirely of PTFE. (PTFE is specially molded into a soft and flexible material) Applications: ●Packing for pipes and valves in fluid piping. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Inner diameter (mm): 27.2 ●Outer diameter (mm): 85 ●Thickness (mm): 3 ●Operating pressure (K): 5 ●Bolt hole center diameter (mm): 65 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 12 ●Operating temperature range: -240 to 315°C ●JIS-5K Material/Finish: ●Fluoroplastic resin (ePTFE)
