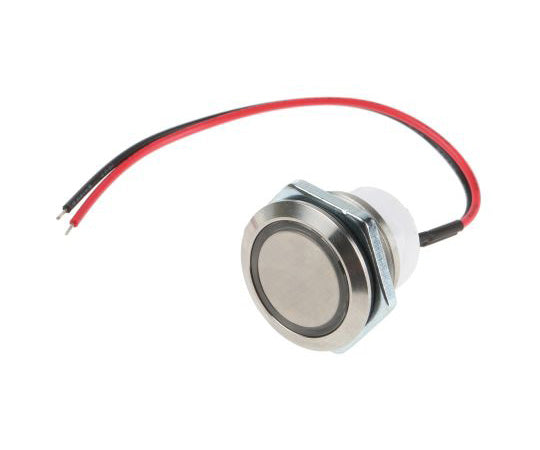

Push Button Switch Single Pole Single Throw (SPST) 250 mA @ 12 V dc Momentary Panel Mount 48M 112R 1pc

A lighting resistor is required for RS part numbers ; 702-7096 702-7096, ; 702-7099 702-7099, ; 702-7093 702-7093. 48M Series Panel-sealed Metal Stainless steel housed panel-sealed pushbutton switches with center-spot and ring-style LED illumination options Ideal for industrial machinery, outdoor controls and kiosks, security products, food processing equipment and medical products Rugged construction with IP67 panel sealing Gold-plated contacts and terminations SPNO contacts rated 250mA @ 12Vdc, 100mA 48Vdc Single hex nut panel fixing, 19.3mm panel cut-out Suitable for panel thickness of 1.3 to 3.8mmQuantity: 1 piece Switch action: momentary Contact Configuration: 1 Pole On/Off Switch Mounting type: Panel mount Contact current rating: 250mA @ 12V dc Illumination: Yes Actuator color: Silver LED color: Red Terminal Type: Solder RoHS Compliance Status: Compliant Code number: 702-7096
