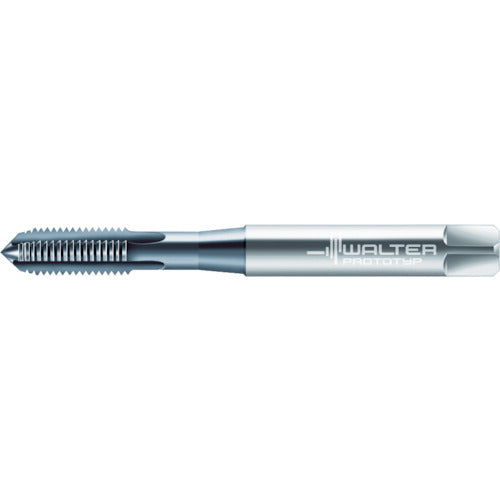

Prototip Point Tap Paradur ECO CI Cutting Tap for Metric Threads TIN Coated M24 Φ19.0 JE2036406-M24 1 piece

Catalog number: JE2036406-M24 Features: ● Suitable for high-precision blind and through thread machining with a thread depth of up to 3 × D. ● Suitable for short-chip workpieces of 100 to 1000 N/mm [square] and up to 32 HRC. Applications: ● For blind and through hole machining. ● Workpiece: Cast iron, aluminum die-cast alloy. Specifications: ● Precision: 6HX ● Nominal size: M24 ● Pitch (mm): 3.00 ● Thread length (mm): 36 ● Total length (mm): 120 ● Shank diameter (mm): 19.0 ● Shank square section (mm): 15.0 ● Pilot hole diameter (mm): 21.0 ● Number of engagement threads: 2 to 3 threads ● Machined thread: Metric thread ● Surface treatment: TiCN coating Material/Finish: ● Powdered high-speed steel (HSS-E-PM)
