Belt sling JIS3 grade, both ends eye-shaped, 25mm x 1.0m, G25-10, 1 piece

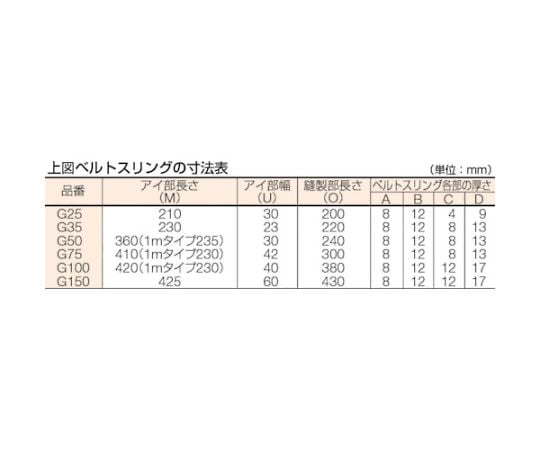

Moderate stretch softens the impact. The green side (used side) and orange side (outer side) are color-coded. (Due to the structure of the belt sling, the durability of the green side (used side) and the orange side (outer side) is different, so please use the green side (used side) correctly.) A marking (red thread) is woven into the material to indicate the limit of use and serve as a guide for replacement. Steel: Transportation of surface-treated steel such as plated and painted steel, steel pipes, steel plates, etc. Machinery: Transport of automobiles, automobile parts, and precision machinery. Total length (m): 1 Belt dimensions (mm) width x thickness: 25 x 8 Eye width (mm): 30 Eye length (mm): 210 Eye thickness (mm): 9 Sewing length (mm): 200 Surface color: Green Back color: Orange Maximum load capacity (t): 0.8 JIS B 8818 standard products (some products have dimensions that do not meet JIS standards) JIS B 8818 standard product (G25 to G50: 1M or more standard product, G75 to G150: 2M or more standard product) JIS B 8818 standard product Operating temperature: 100℃ or less Eye-shaped on both ends Material/Finish: Nylon (Inner: Polyester) Note: Usable temperature below 100°C. Not chemical resistant. As this is a textile product, there may be some errors in the dimensions. Please consult us in advance if you need to have the length exactly the same, such as in a set of two. Be sure to use pads such as corner pads in areas where sharp corners or friction of the load may damage the fiber sling such as belt slings. Even if pads are used, the sling may be damaged or cut due to the load sliding sideways, contact with surrounding walls or objects, or pressure, so please use with caution in the working environment. Country of Origin: Japan Code number: 118-5551
