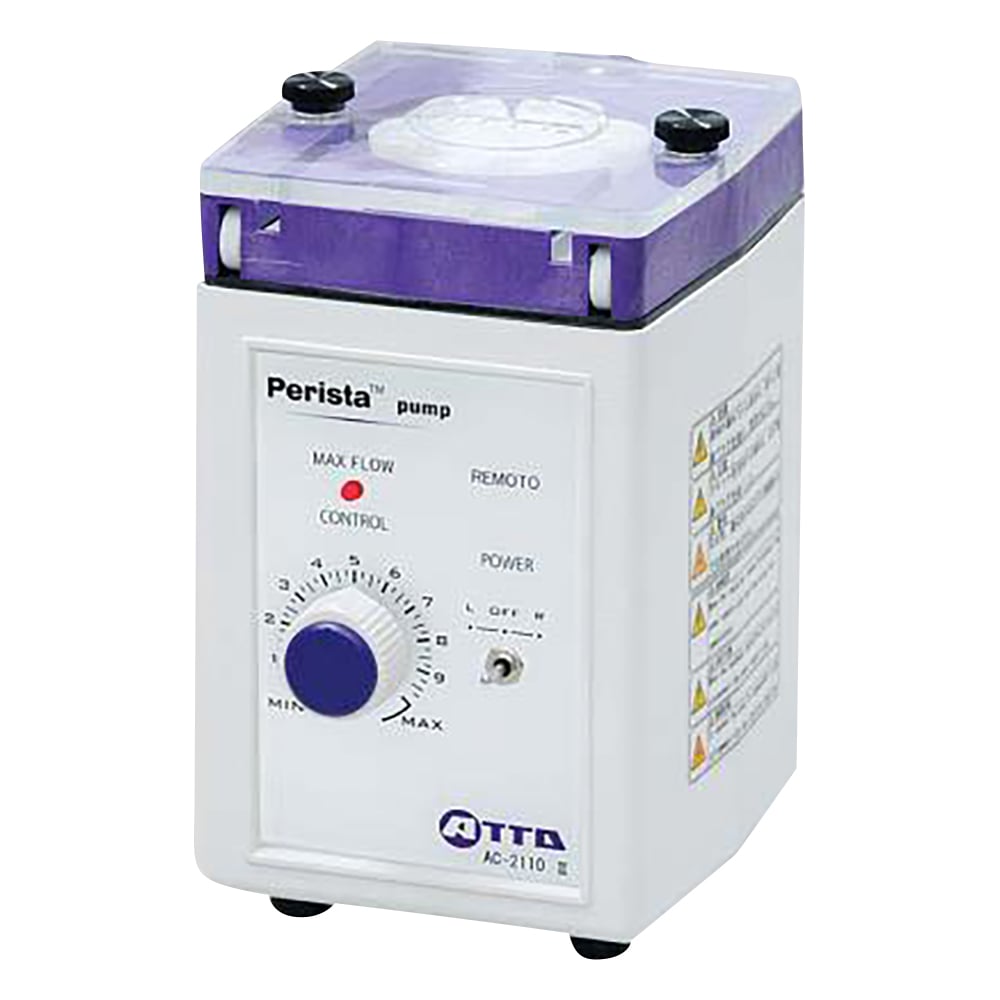

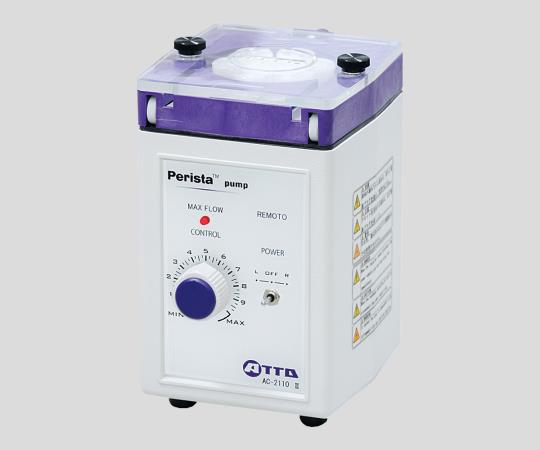

Peristaltic pump 3 flow paths 5 to 1500ml/h 1221333/AC-2110Ⅱ-3 1 unit

This is a multi-path, high flow rate type that can send liquid through up to four paths. External control (flow rate setting input: 0 to 5 VDC, FLOW, STOP) is possible. It is possible to change to an overseas specification power supply. Please contact us. Number of flow paths: 3 Flow rate (mL/h): 5 to 1500 Flow rate variable range: 1 to 45 times (same tube) Flow rate accuracy: Repeat accuracy within ±1%, power supply (90 to 110V) fluctuation ±1% Maximum lift height: 21m Maximum discharge pressure: 205.9kPa (2.1kg/cm2), suction pressure: 9.8kPa (0.1kg/cm2) Compatible viscosity: 1.5 Pa・s (1500 cP) maximum Motor: DC motor Drive circuit: DC servo system Power supply: AC100V 50/60Hz Size: 110 x 150 x 180mm (1 channel) Weight: 1.5kg (1 channel) Accessories: Silicon tube φ5-3, φ4-2, φ3-1mm, 1m each, 1 each per flow path *The liquid delivery volume is per flow path.
