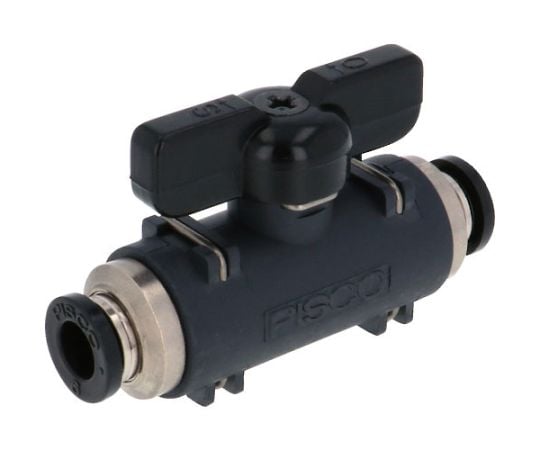

Ball valve 20 series union BVU20-0606 1 piece

Opens or closes the air pressure input to the equipment. The main body material is PPS. Water can be poured. (Conditions apply) Ensures effective cross-sectional area that matches the tube size. Applicable tube outer diameter D (mm): 6 x 6 Operating pressure (MPa): -0.1 to 0.9 Operating temperature range (℃): 0 to 60 (no freezing) Vacuum pressure used (kPa): -100 Fluids used: Air, water (conditions apply) Operating temperature range: 0 to 60°C (no freezing) Operating pressure: 0.9MPa Vacuum pressure used: -100kPa Material/Finish: Metal parts/Brass + electroless nickel plating, Plastic parts/Polyphenylene sulfide (PPS), Sealing rubber/Nitrile rubber (NBR) Note: When using negative pressure, install a vacuum filter on the suction side. Dust may be sucked in and cause malfunction. Country of Origin: Japan Code number: 360-1871
