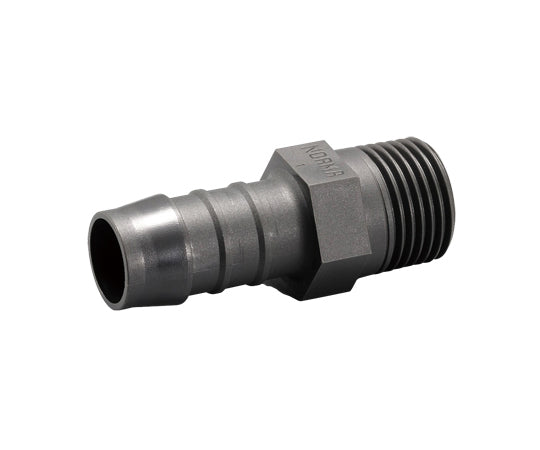

Polyamide Connector Small Diameter GES-0616 1pc

Plastic hose fittings made from polyamide (nylon 6) resin are lightweight hose fittings that are particularly resistant to impact, abrasion, and oil. Injection molded plastic fittings are ideal for sealing low pressure gases and fluids, and for sealing partial vacuum lines. By using this hose fitting in conjunction with a hand clamp, you can achieve stable tightening. Deflection temperature under load: 80°C (1.82MPa) Applications: Ideal for automobiles, engines, machine tools, electrical equipment, food machinery, and chemical and medical equipment parts. Material: Polyamide 6 (dark gray) Maximum operating pressure: 1MPa Operating temperature range: -10℃ to +70℃ Screw (R): 3/4 φD1: 16 φD3: 12 Bamboo shoot outer diameter (φD4): 18 L1: 58 L2: 17 L3: 32 B: 27 Code: 11600117
