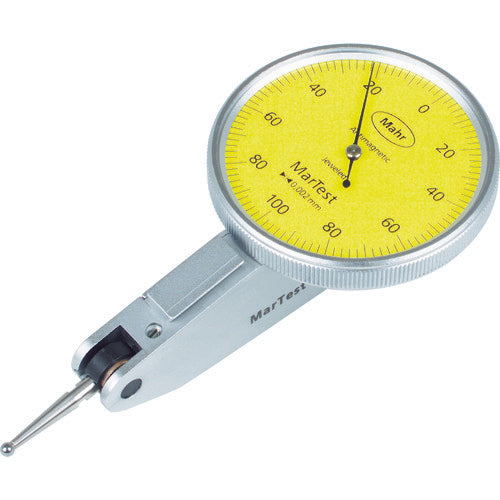

Mahr Lever Dial Gauge 800SGM Dial diameter 38mm Measurement range ±0.1mm (4308200) 800SGM 1 piece

Catalog number: 800SGM Features: ● The fixing bracket (shank) can be freely removed, allowing you to change the position. ● All internal shafts are made of wear-resistant artificial gemstones. ● The mounting shaft comes with two pieces, 6mm and 8mm, and is removable. ● Anti-vibration structure. ● The pointer cover glass is removable, so there is no need to send it out for repair if the glass breaks. ● The fixing bracket (shank) can be freely removed, allowing you to perform tasks that previously required several machines with just one machine, making it economical. Applications: ● For the mold industry in general. ● For research and development projects. Specifications: ● Manufacturer code: 4308200 ● Measurement range (mm): ±0.1 ● Minimum display (mm): 0.002 ● Scale specifications: 0-100-0 ● Mounting shaft diameter (mm): 6/8 ● Measuring force (N): 0.15 ● Dial diameter (mm): 38 ● Lever type
