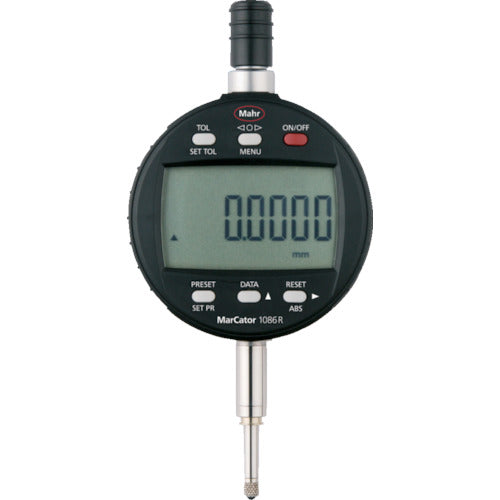

Mahr Digital Indicator 1086R (4337620) 1086R005/12.5 1 piece

Catalog number: 1086R005/12.5 Features: ● Reference function allows for quick measurement. ● High contrast LCD with digits 11mm high. ● Operation and display unit can be rotated 280°. ● Electromagnetic induction type measuring system, battery life approx. 2000 hours. ● Both mounting shank and measuring spindle are made of hardened stainless steel. ● Measurement speed: MAX 1.5m/sec ● Data output: Opto RS232C, Digimatic, USB ● Storage environment temperature: 10 to 40°C Applications: ● For incorporation into jigs. Specifications: ● Manufacturer code: 4337620 ● Measurement range (mm): 0 to 12.5 ● Minimum display (mm): 0.0005 ● Mounting shaft diameter (mm): 8 ● Measuring force (N): 0.65 to 0.90 ● Power supply: Battery (included) ● Protection class: IP42 ● Power supply (V): Battery (included)
