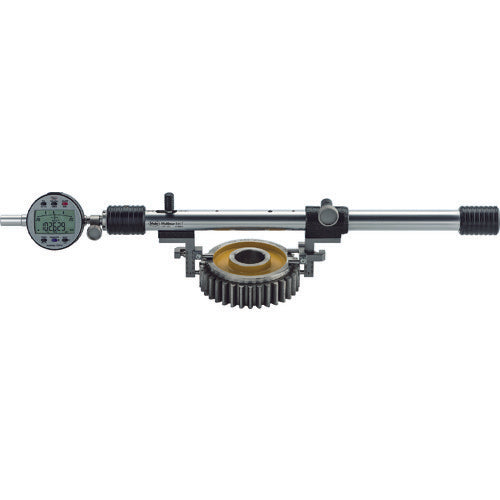

Mahr general purpose measuring instrument Multimar 844T 30-115mm 844T 30-115 1 unit

Catalogue number: 844T 30-115 Features: ● Extreme measurement sensitivity and precision due to the optimum stability and ease of movement of the mobile measuring arm holder. ● The mobile measuring arm holder is mounted on a high-precision ball guide, eliminating play and friction. ● The fixed measuring arm holder can be moved along the column for coarse adjustment. ● The direction of the measuring force can be changed for either the outer or inner diameter. ● The direction of the measuring force can be changed with an Allen key for either the outer or inner diameter. Applications: ● For measuring outer and inner diameters, male and female threads, narrow collars and grooves, outer and inner tapers, outer and inner gears. Specifications: ●Manufacturer code: 4503001 ●Outer diameter (mm): 0-85 ●Inner diameter (mm): 30-115 ●Travel distance of movable part (mm): 12 ●Measuring pressure (N): 5 ●Stable measuring force achieved by incorporating a spring ●Sturdy, ground, hardened chrome-plated column ●Lightweight basic body made from carbon fibre reinforced plastic (CRP) tubing, measuring range 1000-1500 mm Set contents/accessories: ●Mounting and stationary blocks ●Wooden case Note: ●Indicator sold separately.
