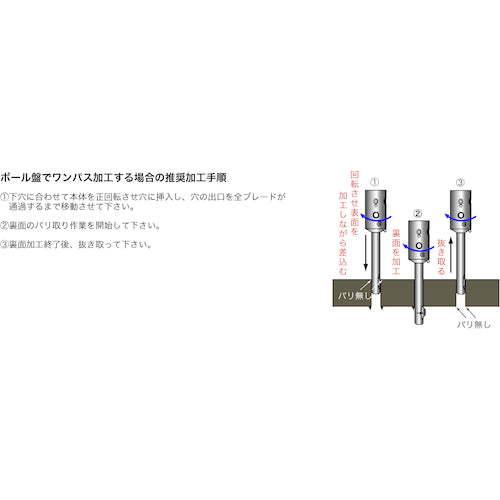

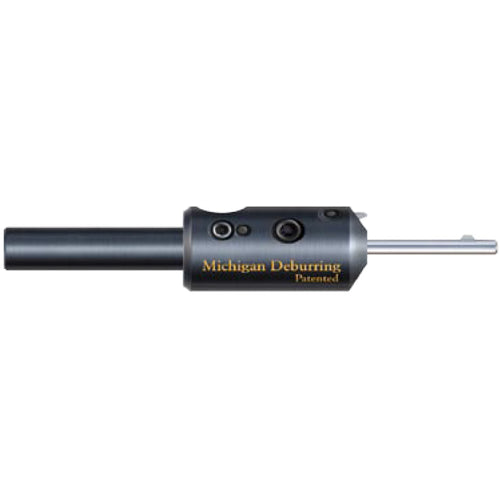

Catalog number: C-200 Features: ● Suitable for deburring the back and front of holes with a minimum diameter of φ1.00 to a maximum diameter of φ26.00. ● Deburring can be done in one pass (reciprocating motion in the Z direction with forward rotation only), significantly reducing the processing cost per hole. ● The modular type for small diameters can also be done manually using the MDT-800 handle. ● Suitable for a wide range of materials, from general steel to aluminum and stainless steel. Applications: ● For deburring the back and front of through holes. Specifications: ●Compatible blade: BC5252S ●Holder name: HC-0785 ●Compatible handle: MDT-800 ●Total length (mm): 69.2 ●Set contents: Holder: HC-0785, Pilot: P-0785, Blade: BC5252S ●Shank diameter (mm): 6 ●Processing range (mm): 1.99 to 2.07 ●Common blade: BC5252S ●Three-piece structure (holder + pilot + HSS blade) ●For small diameters Note: ●There is no dedicated hand handle for the auto-lock type.
