The diaphragm and valve are integrated to achieve lightweight and compact size.
It has self-priming capability so priming is not required.

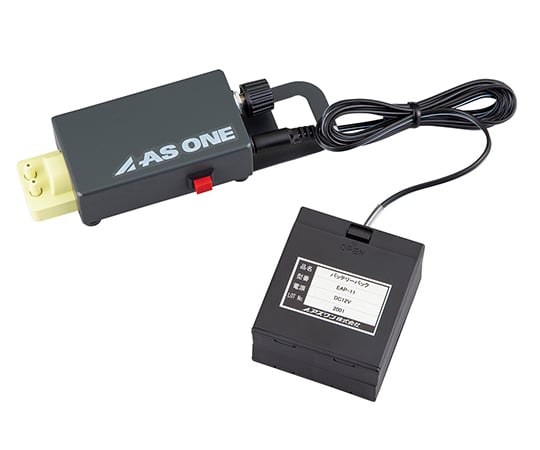

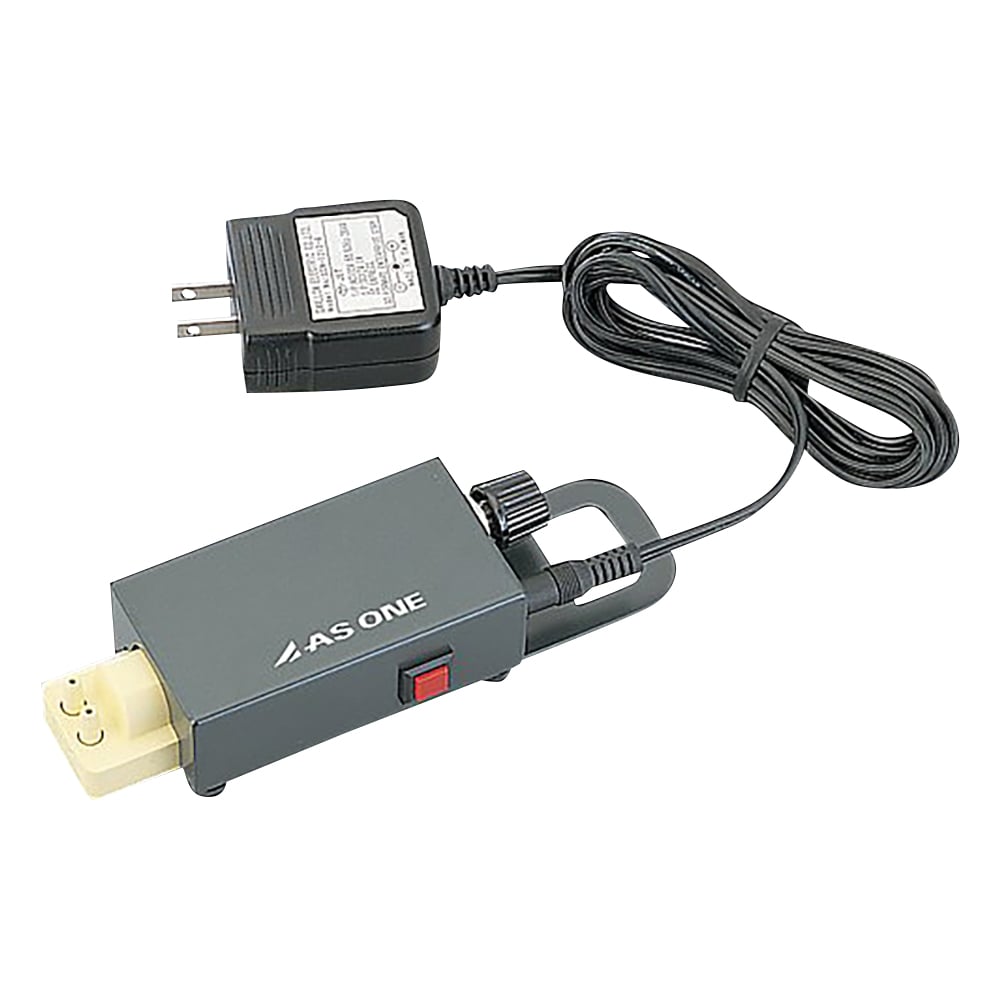

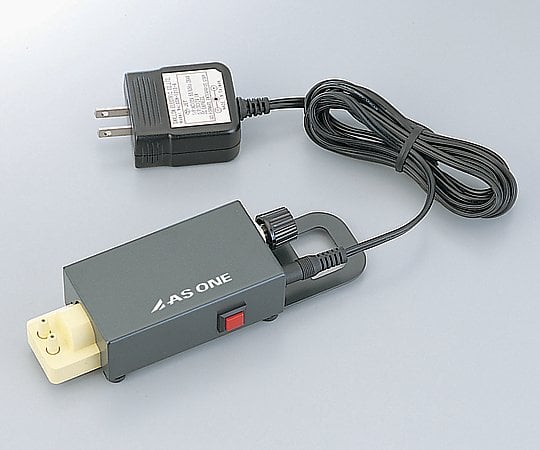

It can be used outdoors by using the optional battery pack (EAP-11). Model number: EWP-01
Maximum vacuum attainment: -20kPa or more
Wetted parts material: EPDM (ethylene propylene rubber) and PBT resin
Size: 50 x 170 x 35 mm
Pipe fitting: φ5.5mm hose end
Power supply: AC100V 50/60Hz 20W
Power cord length: Approx. 2m (2P plug)
Flow rate: 100mL/min
Maximum discharge pressure: 30kPa or more
