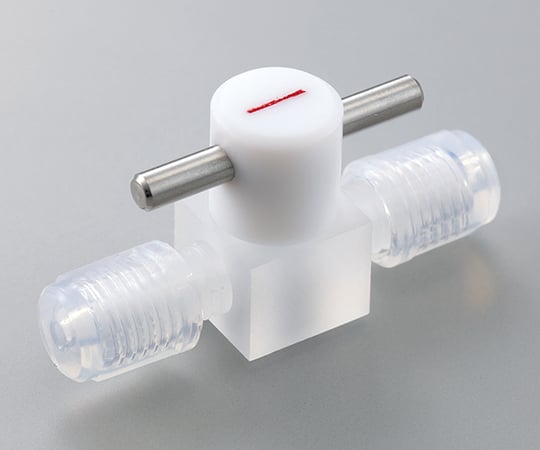

All parts are made of fluororesin, providing excellent chemical resistance.
The body is compact and does not take up much space. Wetted parts material: CTFE, PTFE (fluororesin)
Operating temperature range: 5 to 40°C
Pressure resistance: 0.25MPa
Tube outer diameter (φmm): 3
Orifice diameter (φmm): 1.5

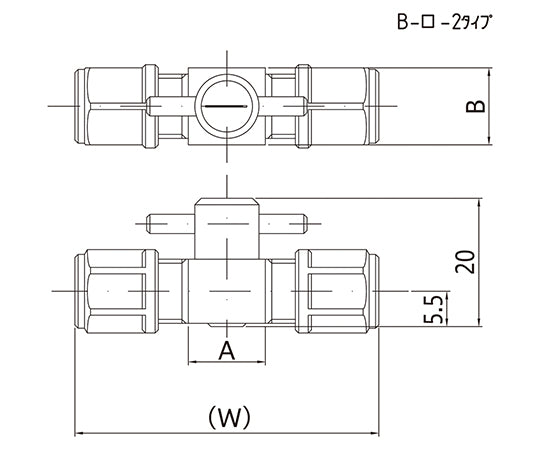

A: 11
B: 11
(W): 45
Tube Connection Type
Code number: F-2129-002
RoHS2 (EU)2015/863 compliant [About RoHS]
