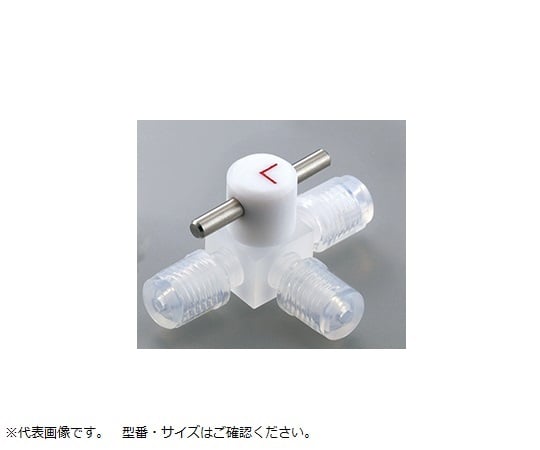

All parts are made of fluororesin, providing excellent chemical resistance.
The body is compact and does not take up much space. Wetted parts material: CTFE, PTFE (fluororesin)
Operating temperature range: 5 to 40°C
Pressure resistance: 0.25MPa
Flow path: L-shaped
Tube outer diameter (φmm): 1.6
Orifice diameter (φmm): 1

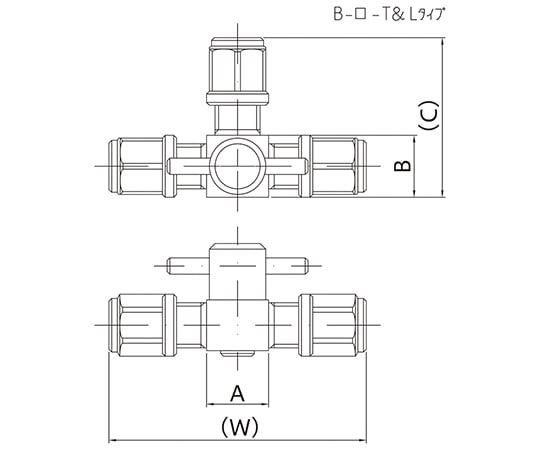

A: 11
B: 11
(C): 25
(W): 38
Tube Connection Type
Code number: F-2128-002
RoHS2 (EU)2015/863 compliant [About RoHS]
