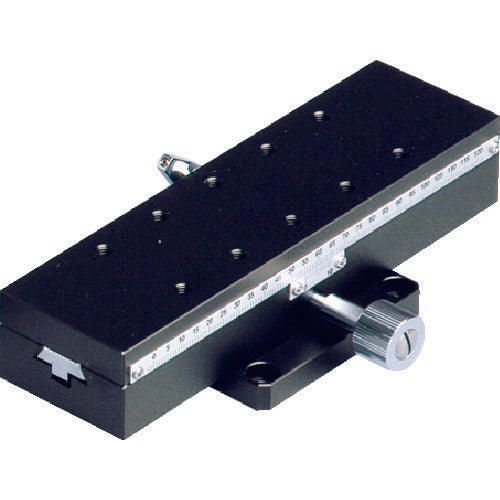

MIRUC Dovetail Stage XY Axis XJK-140 1 pc

Catalog number: XJK-140 Features: ● Smooth sliding and high durability. ● The use of a reinforced clamp lever increases the fixing force and allows the lever to be freely set in any position. Specifications: ● Stage surface (mm): 40 x 140 ● Travel distance (mm): ± 60 ● Travel accuracy Straightness (μm): 30 ● Travel accuracy Parallelism during movement (μm): 30 ● Horizontal load capacity (N): 4 ● Straightness (μm): 30 ● Parallelism during movement (μm): 30 ● Load capacity (N/kgf): 39.2/4 ● Travel distance per handle rotation (mm): 18 ● Travel accuracy Straightness (μm): 30 ● Travel accuracy Parallelism during movement (μm): 30 ● Load capacity (N/kgf): 39.2(4) ● Minimum scale reading (mm): 0.1 ● Rack and pinion type ● Minimum scale reading: 0.1mm
