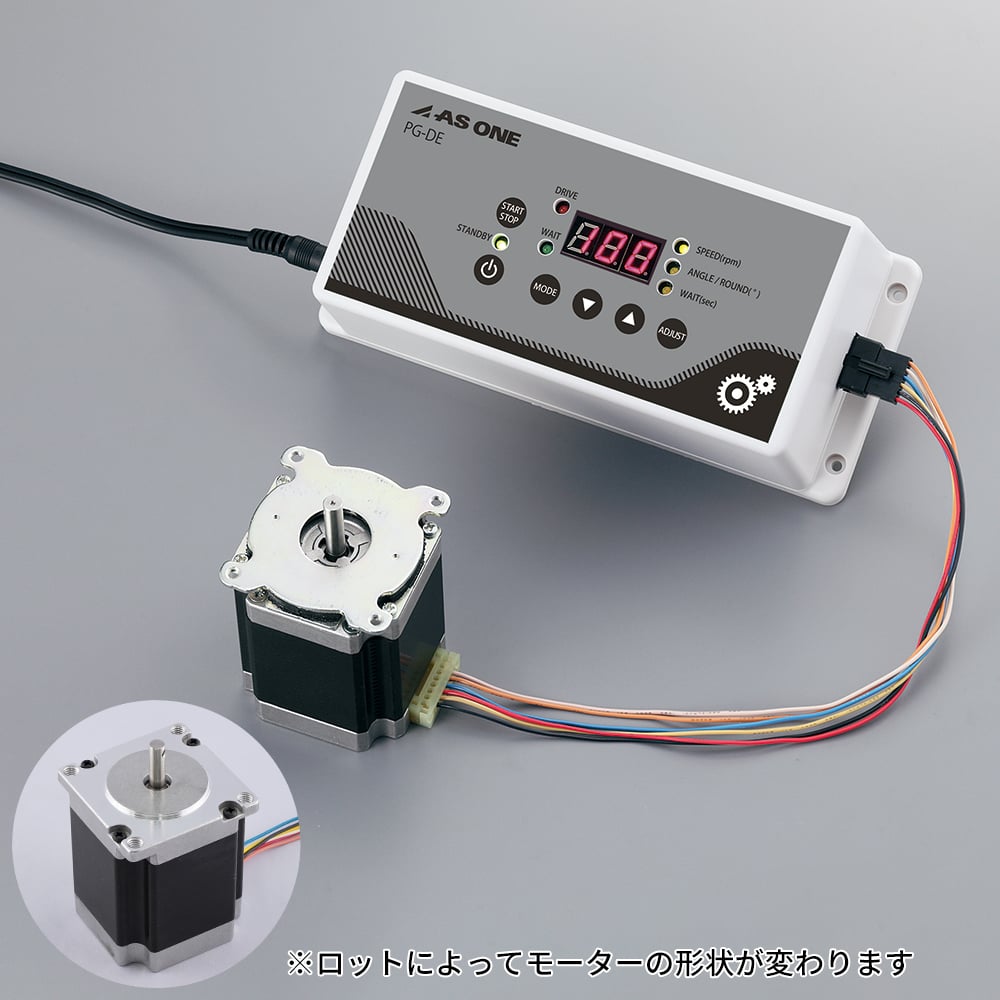

Motor control unit (digital) Angle control type PG-DE 1 piece

Repeated operations can be programmed. This is a control unit specialized for angle specified operation. You can set the rotation direction, speed, timer, etc. It is useful for creating original test machines or prototypes that repeat simple movements. This is for beginners who can easily use it even if they have no knowledge of motor characteristics or circuit design. Type: Digital angle control Motor: Stepping motor function Rotation direction: configurable (CW/CCW) Rotation speed: 1 to 100 rpm Angle: 0 to (360 x 999 laps) (in 9° increments) Change of direction: - Timer: ① Waiting time during intermittent operation (0 to 60 sec) ② Time until operation ends Other functions: Fine adjustment (manual operation), foot switch connection possible (2-3554-11) Set contents: Stepping motor (shaft diameter: Φ6mm, harness length: 300mm), control box, dedicated AC adapter (approx. 1.6m) 【Note】 This product is not supported for disassembly, modification, or use with parts other than the included or genuine optional parts. In addition, we cannot disclose information such as component specifications, electrical circuit diagrams, software, etc.
