Yaboshi Fuji Royal Heavy Duty Door Roller V-Type 50mm with Frame R50V 1 pc

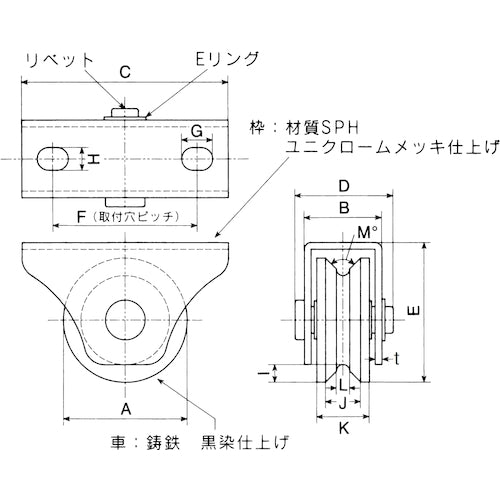

Catalogue number: R50V Features: ●This type is for use with heavy-duty iron V-shaped door rollers and angle rails. Uses: ● Heavy-duty door wheels for gates, carts, etc. Specifications: ● Allowable load (daN): 171.5 ● Allowable load (kgf): 175 ● Wheel diameter (mm): 50 ● Wheel width (mm): 20 ● Mounting height H (mm): 64.5 ● Mounting pitch X (mm): 70 ● Mounting hole diameter P (mm): 15 x 11 ● A (mm): 50 ● B (mm): 33 ● C (mm): 100 ● D (mm): 42 ● E (mm): 64.5 ● F (mm): 70 ● G (mm): 15 ● H (mm): 11 ● I (mm): 5.5 ● J (mm): 12 ● K (mm): 20 ● M (°): 95 ● t (mm): 3.2 ● Load capacity (kg/2 pieces): 350 Materials/Finish: ● Frame: Steel (SPH) - trivalent chromate finish ● Wheel: Cast iron - black dye finish Note: *There may be a mixture of wheels with and without grooves on the sides, but there is no difference in quality.
