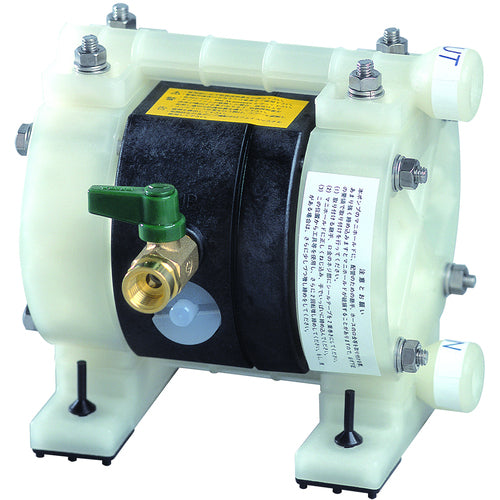

Yamada Diaphragm Pump NDP-5FPT NDP-5FPT 1 unit

Catalog number: NDP-5FPT Features: ● Safely transports flammable liquids. ● By installing a valve at the outlet of the material piping, you can start, stop, and adjust the flow rate just by opening and closing the valve. ● Self-priming, no priming water is required, and air-mixed liquids can be pumped out efficiently. ● Maximum discharge pressure is approximately 0.7 MPa, allowing transport to high or distant locations. ● Adjustable by air regulator. ● No special explosion-proof measures are required as it is driven only by compressed air from the compressor. ● No heat generation due to overload, so it can be used safely and without risk even in explosion-proof areas. Applications: ● Transporting liquid materials containing abrasive elements. ● Pumping liquid materials at high pressure. ● Adjusting discharge pressure. ● Adjusting the valve flow rate at the site of use and stopping it first. Specifications: ●Discharge volume (L/min): 0.5-5.0 ●Discharge port diameter: Rc1/4 ●Pump port diameter: 1/4 inch (8A) ●Nominal port diameter: 1/4 (8mm) ●Air pressure range for pump alone (MPa): 0.2-0.7 ●Maximum flow rate (L/min): 11 ●Overall width (mm): 155 ●Overall length (mm): 149 ●Overall height (mm): 147 ●Maximum discharge pressure (MPa): 0.7 ●Noise level (dB): 80 ●Maximum operating pressure (MPa): 0.7 ●Made in an ISO9001 certified factory ●Valve type: Ball valve Material/Finish: ●Body: Polypropylene ●Diaphragm: PTFE Note: ●Initial self-priming lift: 1M
