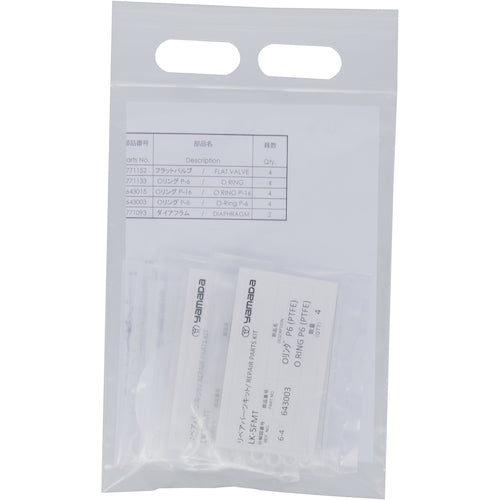

Yamada Liquid Contact Repair Parts Kit LK-20BMT LK20BMT 1 set

Catalog number: LK20BMT Features: ●Repair parts kit for the liquid contact parts of the YAMADA air-driven diaphragm pump NDP-20/P20 BAT/BST. ●Comes with general consumable parts, making it easy to maintain the diaphragm pump you are using. Applications: ●For YAMADA NDP-20/P20 BAT/BST liquid contact parts. ●For repairing the liquid contact parts of NDP-20/P20 BAT/BST. Specifications: ● Discharge volume (L/min): 100 ● Discharge port diameter: 3/4 ● Pump diameter: 3/4 ● Nominal diameter: 20mm ● Pump air pressure range (MPa): 0.2-0.7 ● Maximum flow rate (L/min): 100 ● Maximum pressure (bar): 7 ● Maximum discharge pressure (MPa): 0.7 ● Connection port diameter (mm): 6.5 ● Noise level (dB): 82 ● Transfer temperature (℃): 0-100 ● Specific gravity of liquid usable viscosity (mPa・s): 8000 ● Maximum discharge volume (L/h): 6000 ● Discharge volume (ml/min): 100000 Material/Finish: ● Gaskets: Fluorine resin (PTFE) ● Casing: Aluminum alloy (ADC12), stainless steel (SCS14) Set contents/accessories: ●643036 O-ring (4 pieces), 770736 ball (4 pieces), 771131 O-ring (2 pieces), 771083 diaphragm (2 pieces), 643013 O-ring (4 pieces), 640151 O-ring (2 pieces) ●Parts exploded view, parts list Note: ●Applicable models: YAMADA NDP-20BAT, NDP-P20BAT, NDP-20BST, NDP-P20BST
