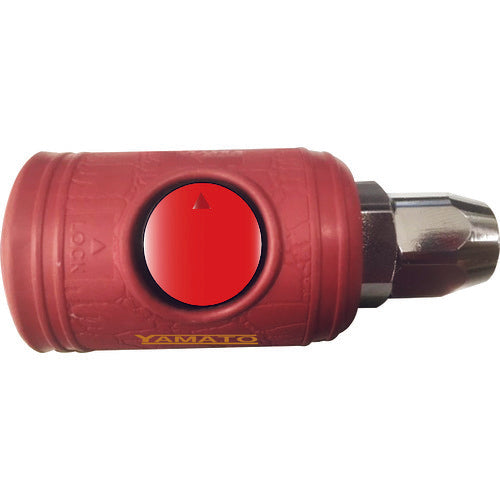

Yamato Metal Coupling Button Type Coupling Socket BLB22-SN-P Mating Size Φ6.5 x Φ10 Urethane Hose BLB22-SN-P 1 pc

Catalogue number: BLB22-SN-P Features: *Easy to connect, just insert the plug. *Easy to disconnect, just press the button. *Safety due to the locking function with the button knob. *Rubber case prevents damage to the object and absorbs shock. *Reduces recoil of the plug when discharging air from the piping during disconnection. *Smooth swivel operation on the plug side. *Maximum weight reduction. Specifications: ●Pressure resistance (MPa): 1.5 ●Mating hose size (mm): 6.5 x 10 ●Operating fluid: Air ●Operating temperature range (℃): -20 to 80 ●Maximum operating pressure (MPa): 1.0 ●Mating hose size (inches): φ6.5 x φ10 urethane hose ●Mating mounting size: φ6.5 x φ10 urethane hose ●Cover color: Red ●Mounting size: 6.5 x 10 ●Compatible coupler: Type 20 ●Color: Red Material/Finish: ●Main body: Steel, hard resin ●Main body cover: Chloroprene rubber (CR) ●Sealing rubber: Nitrile rubber (NBR) Caution: ●May not be suitable for air tools that require high flow rates.
