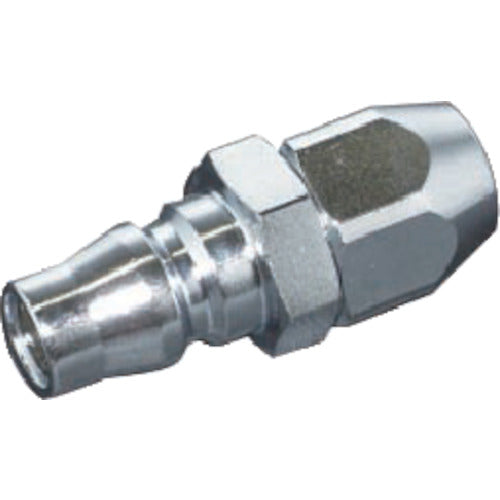

Yamato Metal Coupling BLY Coupling Plug (Nut Plug) BLY23-PN Suitable Hole Size 8.5 x 12.5 mm BLY23-PN 1 pc

Catalog number: BLY23-PN Features: ● Important components are hardened to improve strength, and have excellent abrasion resistance and durability. Applications: ● For air piping in factories and hose connections for air tools. Specifications: ● Pressure resistance (MPa): 2.0 ● Mating hose size (mm): 8.5 x 12.5 ● Fluid used: Air ● Operating temperature range (℃): -20 to 80 ● Maximum operating pressure (MPa): 1.5 ● Mating hose size (inch): φ8.5 x φ12.5 urethane hose ● Mating mounting size: φ8.5 x φ12.5 urethane hose ● Mounting size: 8.5 x 12.5 ● Compatible coupler: Type 20 ● Material: Steel (chrome) ● Applicable hose (mm) inner diameter x outer diameter: 8.5 x 12.5 ● Operating temperature range: -20 to 80℃ Material/Finish: ● Body: Steel (chrome plated)
