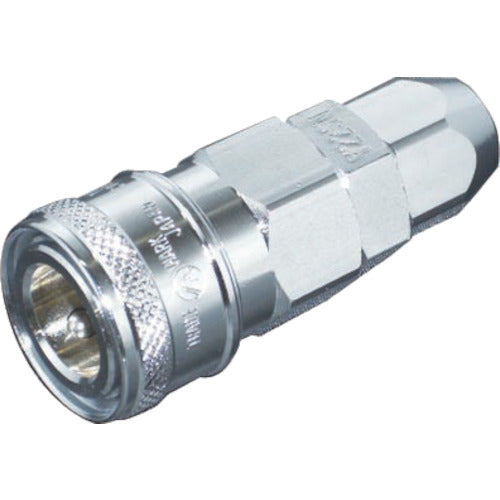

Yamato Metal Coupling BLY Series Coupling Socket (for mounting urethane hose) Mating hose size 8.5 x 12.5 BLY23-SN 1 pc

Catalog number: BLY23-SN Features: ● Hardening is applied to important components to improve strength, and it is also excellent in wear resistance and durability. Applications: ● For air piping in factories and hose connections for air tools. Specifications: ● Pressure resistance (MPa): 2.0 ● Mating hose size (mm): 8.5 x 12.5 ● Fluid used: Air ● Operating temperature range (℃): -20 to 80 ● Maximum operating pressure (MPa): 1.5 ● Mating hose size (inch): φ8.5 x φ12.5 urethane hose ● Mating mounting size: φ8.5 x φ12.5 urethane hose ● Mounting size: 6.5 x 10 ● Compatible coupler: 20 type ● Compatible connection size (inch): 8.5 x 12.5 ● Material: Steel (chrome) ● Size: For 8.5 x 12.5 hose ● Operating temperature range: -20℃ to 80℃ Material/Finish: ● Body: Steel (chrome plated) ● Seal rubber: Nitrile rubber (NBR)
