(有)ヤマトエンジニアリング

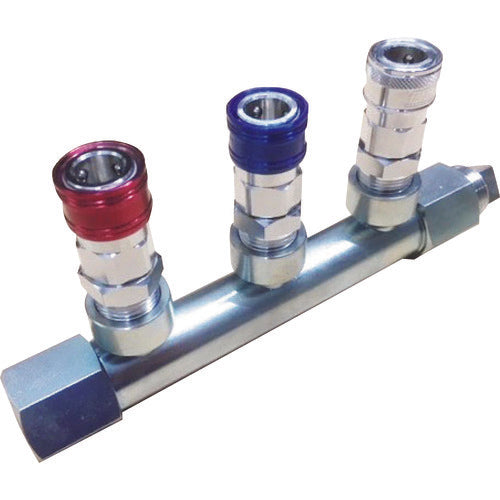

Yamato PAL Series Air Header Coupling Socket 6PAL3-2040-21 1 pc
Yamato PAL Series Air Header Coupling Socket 6PAL3-2040-21 1 pc
Regular price
¥11,665
Regular price
Sale price
¥11,665
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: 6PAL3-2040-21 Features: ●3-way air outlet can be directly connected to the piping. ●Time-consuming air piping work can be easily performed. ●Industry-first color coupling is used. ●Pipe lines can be color-coded. ●Lighter than conventional products. Applications: ●Air outlet can be directly connected to the air piping. Specifications: ●Number of branches: 3 ●Intake port: R3/4 ●Color: Red, blue, silver ●Fluid used: Air ●Maximum operating pressure: 1.5Mpa ●Operating temperature range: -20℃ to 80℃ Materials/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Caution: ●The coloring is painted, so peeling may occur depending on the usage conditions.
