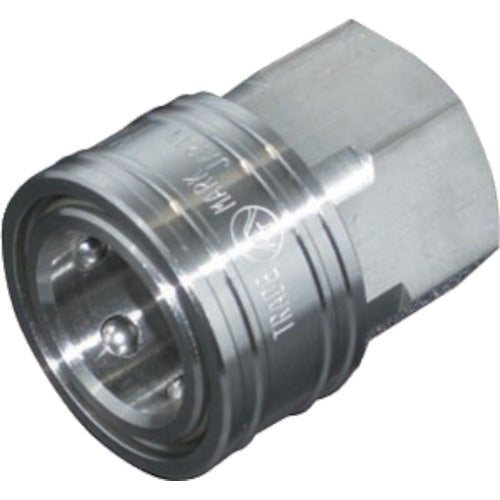

Yamato STY coupling socket (for male thread installation, stainless steel) STY4-SF STY4-SF SUS 1 piece

Catalog number: STY4-SF SUS Features: ● Valve-less internal structure reduces pressure loss and allows even highly viscous fluids to flow extremely smoothly. Applications: ● Valve-less structure for high-viscosity fluids. Specifications: ● Pressure resistance (MPa): 10.0 ● Counterpart mounting size: R1/2 ● Fluids used: air, water, hydraulic oil, etc. ● Maximum operating pressure (MPa): 7.5 ● Material: Stainless steel (SUS304) ● Operating temperature range: -20 to 80°C ● Valve-less Material/Finish: ● Body: Stainless steel ● Sealing rubber: Nitrile rubber (NBR)
