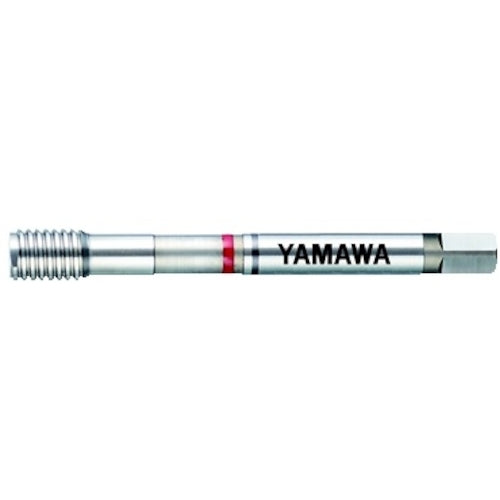

Yamawa Simple Screw Inspection Tool SIT M12X1.5 6H NB SIT-M12X1.5-6H-NB 1 piece

Catalog number: SIT-M12X1.5-6H-NB Features: * Blue coloring is used for "through use" and red coloring is used for "stop use" for easy identification and storage. * High-quality material (HSS) is used for significantly longer life. * Step thread is used at the tip of the threaded part, reducing the burden of inspection work and improving work efficiency. * The tip of the SIT "through use" makes it easy to enter the female thread by gradually increasing the entire thread, which is particularly effective when inspecting fine thread pitch. * Step thread is not used for "stop use". Uses: ●For stopping Specifications: ●Precision: 6H ●Precision notation: JIS ●Nominal dimensions: M12 ●Pitch (mm): 1.5 ●Thread length (mm): 10 ●Total length (mm): 82 ●Shank diameter (mm): 8.5 ●Shank square section (mm): 6.5 ●Machined thread: Metric thread ●Surface treatment: Non-coating ●For metric threads Material/Finish: ●High-speed tool steel (HSS)
