Yamawa Hand Tap for Aluminum (for Insert Coil Screws) AL-HT STI 1B M10X1.5 5P AL-HT-M10-2 1 Piece

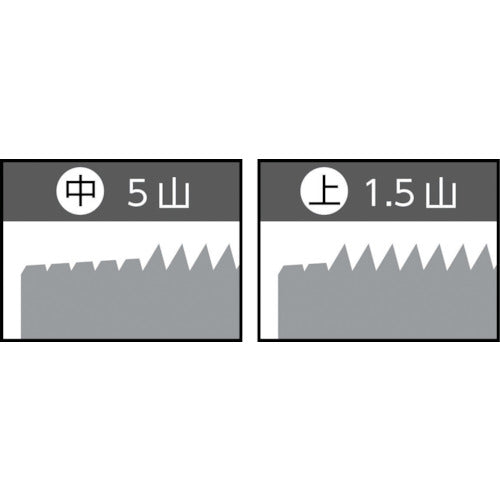

Catalog number: AL-HT-M10-2 Features: ● For parts made of relatively soft materials such as aluminum, this taper machine taps for inserting insert coils to reinforce the taps and increase durability. ● There are two types of engagement parts: blind hole 1.5P and through hole 5P. Applications: ● Workpiece: Aluminum rolled material, aluminum alloy castings, zinc alloy castings. Specifications: ● Tip: Medium ● Precision: 1b ● Precision notation: 1b ● Nominal size: M10 ● Pitch (mm): 1.5 ● Thread length (mm): 26 ● Total length (mm): 82 ● Shank diameter (mm): 8.5 ● Shank square section (mm): 6.5 ● Pilot hole diameter (mm): 10.5 ● Surface treatment: Non-coated ● Pitch ● Machined thread: Metric thread ● Tap grade: 1b grade Material/Finish: ● High-speed tool steel (HSS)
