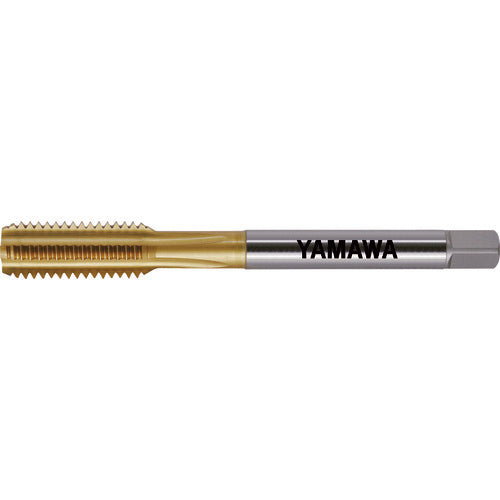

Yamawa Arcus Hand Tap AXE-HT P3 M10X1.25 1.5P AXE-HT-P3-M10X1.25-1.5P 1 piece

Catalog number: AXE-HT-P3-M10X1.25-1.5P Features: ●Special blade design and combination of premium powder HSS (high wear resistance and heat resistance) and special coating extend tool life by 5 times compared to conventional aluminum taps. ●Blade shape with less blade damage suppresses dimensional change of female thread and deterioration of surface roughness. ●Optimal combination of negative rake angle and eccentric relief allows for medium to high speed operation. Applications: ●Workpiece: Cast iron, aluminum alloy castings, zinc alloy castings. Specifications: ● Precision: P3 ● Precision notation: P grade ● Nominal size: M10 ● Pitch (mm): 1.25 ● Thread length (mm): 23 ● Total length (mm): 75 ● Shank diameter (mm): 7 ● Square shank section (mm): 5.5 ● Counterbore diameter (mm): 8.85 ● Machined thread: Metric thread ● Surface treatment: TiN coating ● Number of grooves: 4 ● Number of engaging threads: 1.5 threads ● Number of engaging threads: 1.5 threads ● Shank length (mm): 38 ● Length of square shank section (mm): 8 Material/Finish: ● High-speed tool steel: Powdered high speed steel (HSS-P)
