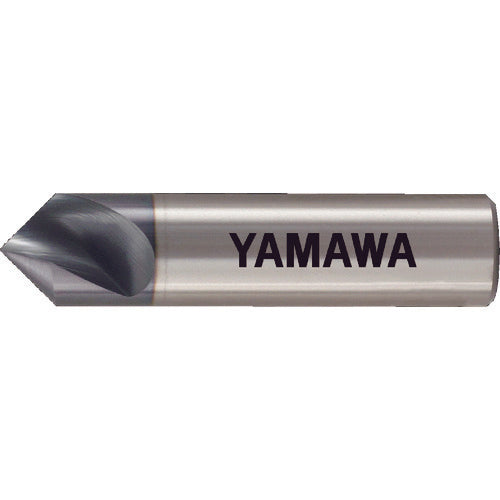

Yamawa Coated Single-Edged Point Drill PE-90° AUPEQ 8X2.5X90° AUPEQ-8X2.5X90 1 piece

Catalog number: AUPEQ-8X2.5X90 Features: ●Can be used for multiple functions such as simultaneous combined positioning and chamfering and groove machining. ●Single-edged point drills allow greater freedom of protrusion, allowing chips to be discharged smoothly. ●Eliminates problems with center hole drills that cause the drill part to break. ●Can perform simultaneous combined positioning and chamfering, and can be used for multiple functions such as groove machining. ●High machining accuracy is achieved due to the excellent bite provided by the two-stage flat shape. ●Single-edged point drills allow greater freedom of protrusion, allowing chips to be discharged smoothly. Uses: ●Cutting materials: mild steel, carbon steel, alloy steel, tempered steel, stainless steel, aluminum alloy castings Specifications: ●Taper diameter (mm): 2.5 ●Shank diameter (mm): 8 ●Total length (mm): 50 ●Center hole angle (°): 90 ●Drill diameter (mm): 2.5 ●Drill length (mm): 0.65 ●Surface treatment: TiCN coating ●Point diameter (mm): 2.5 ●Point length (mm): 0.65 ●Blade shape: single-edged ●Counterbore angle: 90° ●Blade shape: single-edged Material/Finish: ●High-speed tool steel (HSS)
