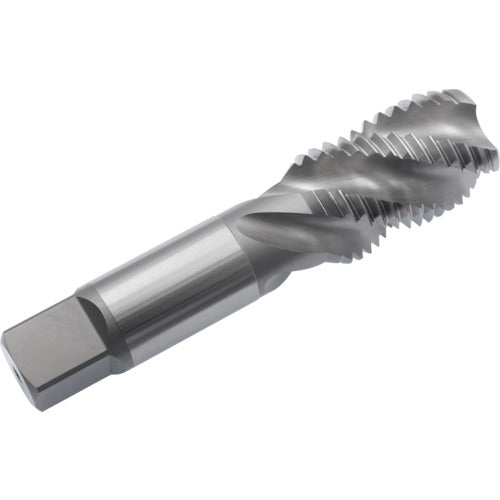

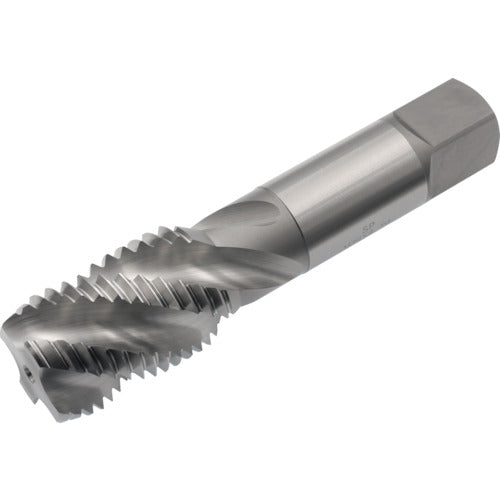

Yamawa Spiral Tap SP P3 M36X2 SP-P3-M36X2 1 piece

Catalog number: SP-P3-M36X2 Features: ●The groove is twisted, so small curled chips are discharged backwards and chip clogging does not occur, making it ideal for blind hole machining. ●It has a sharp cutting edge, making it ideal for threading sticky work materials and plastics. ●Tap is easy to bite into. ●Can also be used for intermittent cutting of pilot holes with keyways. ●Blade strength is inferior to HT, so the HT shape is more suitable for high hardness materials. Applications: ●For blind hole machining. ●Work material: Medium carbon steel. Specifications: ● Precision: P3 ● Precision notation: P grade ● Nominal size: M36 ● Pitch (mm): 2 ● Thread length (mm): 52 ● Total length (mm): 155 ● Shank diameter (mm): 28 ● Shank square section (mm): 21 ● Counterbore diameter (mm): 34.1 ● Number of engaging threads: 2.5 threads ● Machined thread: Metric thread ● Number of grooves: 4 ● Spiral tap for blind holes Material/Finish: ● High-speed tool steel (HSS)
