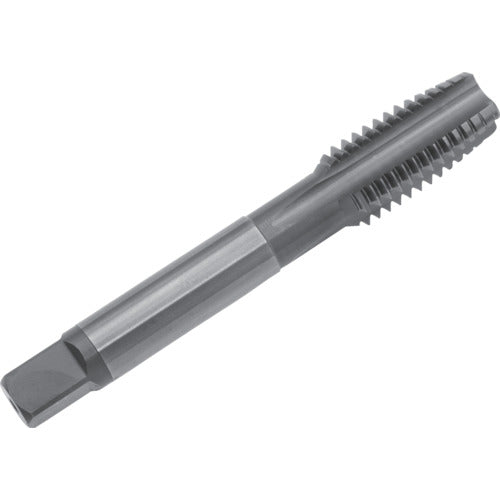

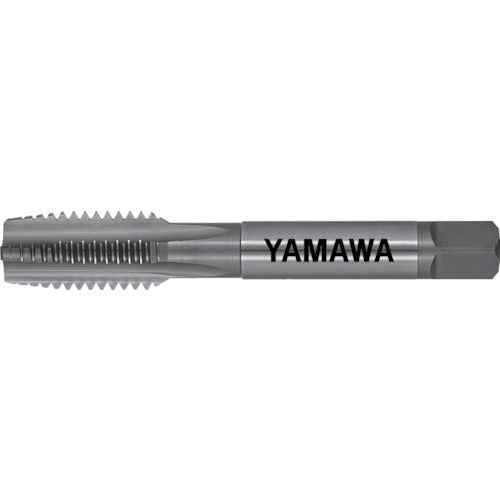

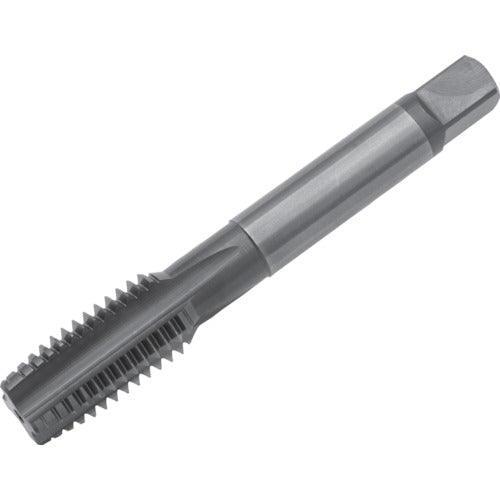

Yamawa Die Cast Hand Tap LA-HT P4 M10X1.5 5P LA-HT-M10X1.5-2 1 piece

Catalog number: LA-HT-M10X1.5-2 Features: ●Oversized taps that deal with the tendency of female threads to shrink, such as aluminum alloy die castings (ADC) and zinc alloy die castings (ZDC). Applications: ●Workpiece: Aluminum rolled materials, aluminum alloy castings, and zinc alloy castings. Specifications: ●Tip: Medium ●Accuracy: P4 ●Accuracy notation: P class ●Nominal dimensions: M10 ●Pitch (mm): 1.5 ●Thread length (mm): 23 ●Total length (mm): 75 ●Shank diameter (mm): 7 ●Shank square section (mm): 5.5 ●Pilot hole diameter (mm): 8.60 ●Machined thread: Metric thread ●Surface treatment: Nitriding ●Number of grooves: 4 ●Number of engaging threads: 5 ●Number of engaging threads: 5 Material/Finish: ●High-speed tool steel (HSS)
