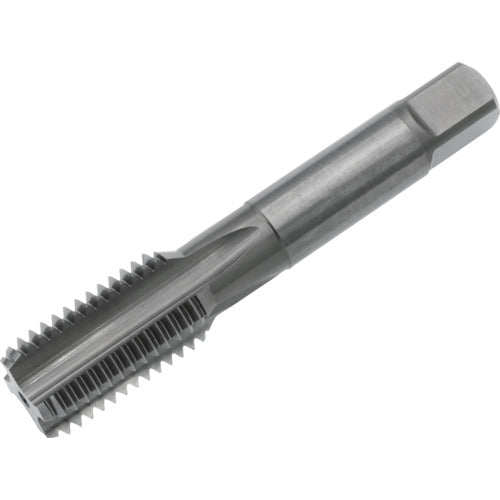

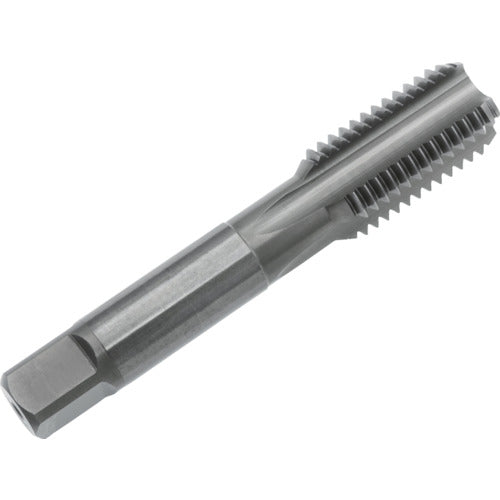

Yamawa Die Cast Hand Tap LA-HT P4 M24X1.5 1.5P LA-HT-P4-M24X1.5-1.5P 1 piece

Catalog number: LA-HT-P4-M24X1.5-1.5P Features: ●Oversized taps that deal with the tendency of female threads to shrink, such as aluminum alloy die castings (ADC) and zinc alloy die castings (ZDC). Applications: ●Workpiece: Aluminum rolled materials, aluminum alloy castings, and zinc alloy castings. Specifications: ●Tip: Top ●Accuracy: P4 ●Accuracy notation: P class ●Nominal dimensions: M24 ●Pitch (mm): 1.5 ●Thread length (mm): 39 ●Total length (mm): 120 ●Shank diameter (mm): 19 ●Shank square section (mm): 15 ●Pit ​​hole diameter (mm): 22.60 ●Machined thread: Metric thread ●Surface treatment: Nitriding ●Number of grooves: 4 ●Number of engagement teeth: 1.5 teeth Material/Finish: ●High-speed tool steel (HSS)
