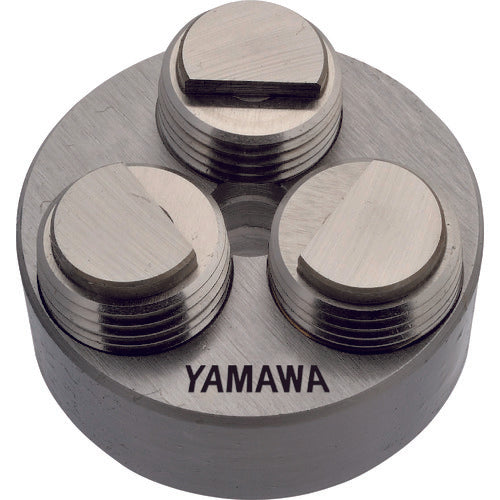

Yamawa New Rolling Die N-RSD R4 M3X0.5 25 diameter N-RSD-R4-M3X0.5-25 1 piece

Catalog number: N-RSD-R4-M3X0.5-25 Features: ●This rolling die can process high-precision male threads with a beautiful finish without generating cutting chips by thread processing using plastic processing. ●Improves work efficiency and greatly improves tool life in "male thread processing of P=0.5 or more", which could not be solved with conventional rolling dies. ●Compared to conventional products, the bite load has been significantly reduced and the tool life has been improved. ●Ideal for small-volume, multi-variety screws and small-diameter long screws that are difficult to handle with rolling rollers. ●We recommend using automatic lathes, lathes, and machining centers. Applications: ●For male thread processing. Specifications: ●Nominal size: M3 ●Pitch (mm): 0.5 ●Outer diameter (mm): 25 ●Thickness (mm): 9 ●Processing screw: Metric screw ●Accuracy: R4 ●Number of bite threads: 2 ●Surface treatment: Non-coated Material/Finish: ●High-speed tool steel (HSS)
