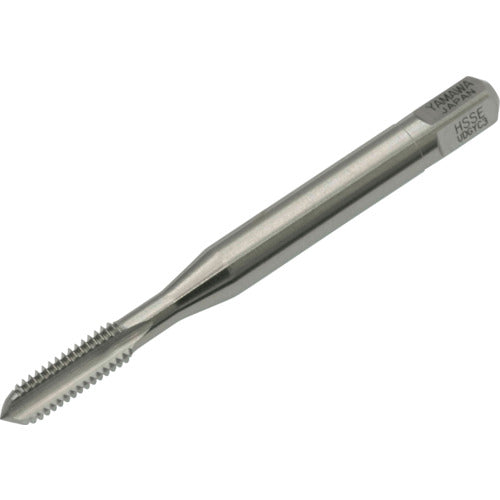

Yamawa Hand Tap for Left-Hand Threads HT LH P1 M2.3X0.4 1.5P HT-LH-P1-M2.3X0.4-1.5P 1 Piece

Catalog number: HT-LH-P1-M2.3X0.4-1.5P Features: ●Hand tap for left-handed thread processing. Applications: ●Workpiece: Medium carbon steel. Specifications: ●Tip: Top ●Accuracy: P1 ●Accuracy notation: P class ●Nominal dimensions: M2.3 ●Pitch (mm): 0.4 ●Thread length (mm): 7.2 ●Total length (mm): 42 ●Shank diameter (mm): 3 ●Shank square section (mm): 2.5 ●Pilot hole diameter (mm): 1.95 ●Processing thread: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 3 ●Number of engaging teeth: 1.5 teeth Material/Finish: ●High-speed tool steel (HSS)
