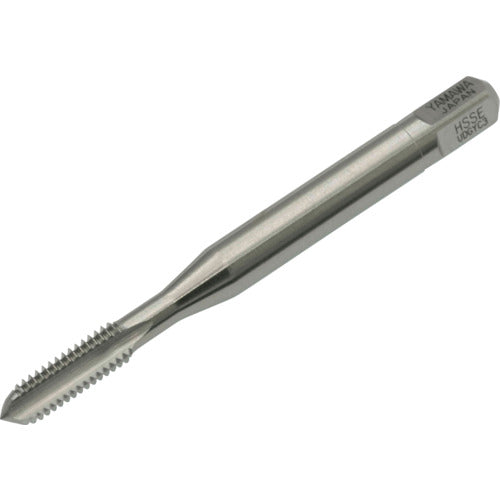

Yamawa Hand Tap for Left-Hand Threads HT LH P2 1/8W40 1.5P HT-LH-P2-1/8W40-1.5P 1 Piece

Catalog number: HT-LH-P2-1/8W40-1.5P Features: ●Hand tap for left-handed thread processing. Applications: ●Workpiece: Medium carbon steel. Specifications: ●Tip: Top ●Accuracy: P2 ●Accuracy notation: P class ●Nominal dimensions: W1/8 ●Thread length (mm): 11 ●Total length (mm): 52 ●Shank diameter (mm): 5 ●Shank square section (mm): 4 ●Pilot hole diameter (mm): 2.53 ●Number of threads: 40 ●Processing thread: Whitworth thread ●Surface treatment: Non-coated ●Number of grooves: 3 ●Number of engaging threads: 1.5 threads Material/Finish: ●High-speed tool steel (HSS)
