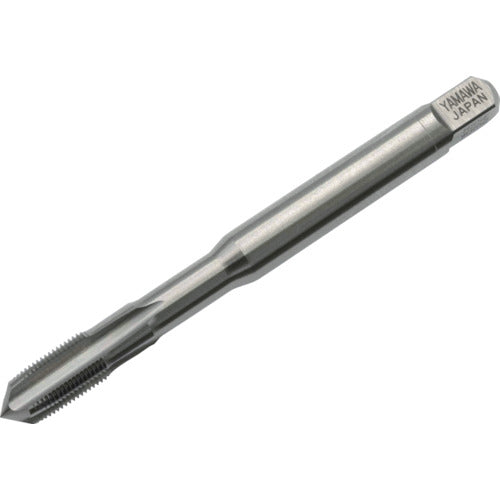

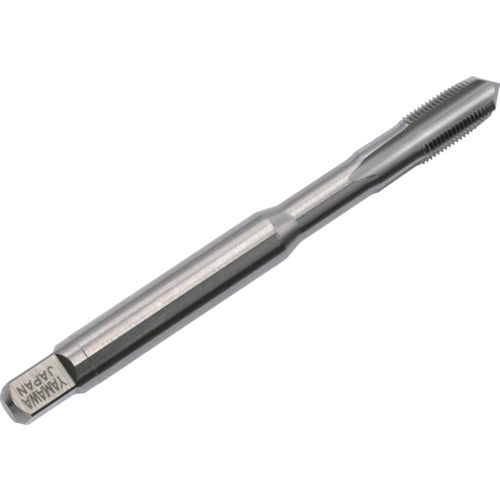

Yamawa Hand Tap HT P1 3/32SM100 5P HT-P1-3/32SM100-5P 1 piece

Catalog number: HT-P1-3/32SM100-5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting material: Medium carbon steel. Specifications: ● Tip: Medium ● Precision: P1 ● Precision notation: P grade ● Nominal dimensions: SM3/32 ● Thread length (mm): 3.4 ● Overall length (mm): 46 ● Shank diameter (mm): 3 ● Shank square section (mm): 2.5 ● Pilot hole diameter (mm): 2.14 ● Number of threads: 100 ● Machined thread: Machine thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Number of engaging threads: 5 Material/Finish: ● High-speed tool steel (HSS)
