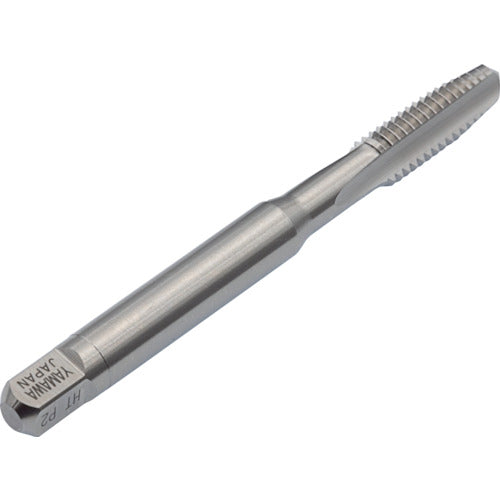

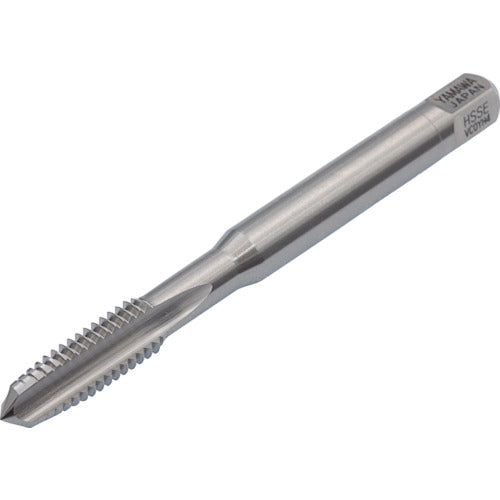

Yamawa Hand Tap HT P2 1/4-28UNF 5P HTP-UNF-1/4-2 1 piece

Catalog number: HTP-UNF-1/4-2 Features: ● Unified thread taps are used in a wide range of applications. Applications: ● Workpiece materials: carbon steel, tool steel, cast steel, cast iron, ductile cast iron, brass, aluminum alloy castings, zinc alloy castings, tempered steel, brass castings. Specifications: ● Tip: Medium ● Precision: P2 ● Precision notation: P grade ● Nominal dimensions: UNF1/4 ● Thread length (mm): 15 ● Total length (mm): 62 ● Shank diameter (mm): 6.0 ● Shank square section (mm): 4.5 ● Pilot hole diameter (mm): 5.53 ● Number of threads: 28 ● Machined threads: Unified threads ● Surface treatment: Non-coated ● Tap grade: P grade Material/Finish: ● High-speed tool steel (HSS)
