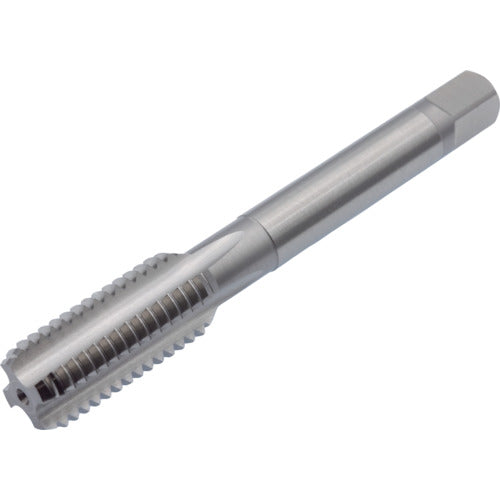

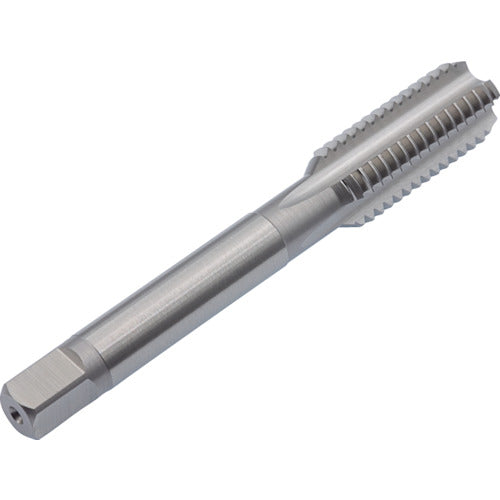

Yamawa Hand Tap HT P2 3F M7X1 1.5P HT-P2-3F-M7X1-1.5P 1 piece

Catalog number: HT-P2-3F-M7X1-1.5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Top ● Precision: P2 ● Precision notation: P grade ● Nominal dimensions: M7 ● Pitch (mm): 1 ● Thread length (mm): 19 ● Total length (mm): 70 ● Shank diameter (mm): 6.2 ● Shank square section (mm): 5 ● Pilot hole diameter (mm): 6.09 ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Number of engaging teeth: 1.5 teeth ● Shank length (mm): 36 ● Length of shank square section (mm): 8 Material/Finish: ● High-speed tool steel (HSS)
