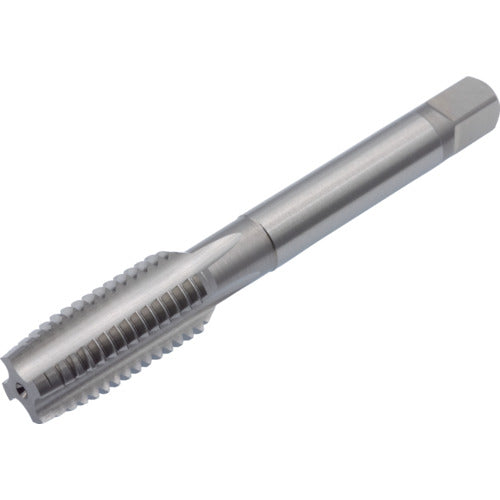

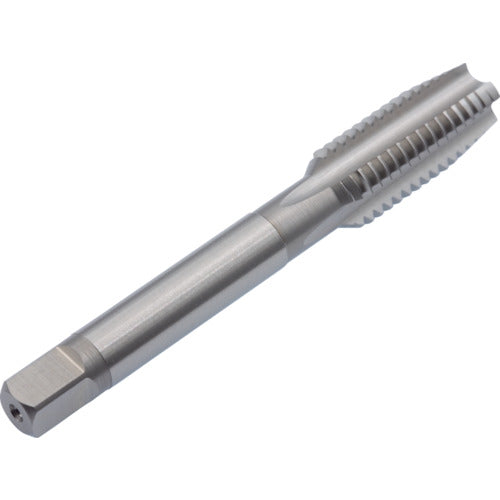

Yamawa Hand Tap HT P2 M9.5X1 5P HT-P2-M9.5X1-5P 1 piece

Catalog number: HT-P2-M9.5X1-5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Medium ● Precision: P2 ● Precision notation: P grade ● Nominal dimensions: M9.5 ● Pitch (mm): 1 ● Thread length (mm): 23 ● Total length (mm): 75 ● Shank diameter (mm): 7 ● Shank square section (mm): 5.5 ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging teeth: 5 teeth ● Shank length (mm): 38 ● Length of shank square section (mm): 8 Material/Finish: ● High-speed tool steel (HSS)
