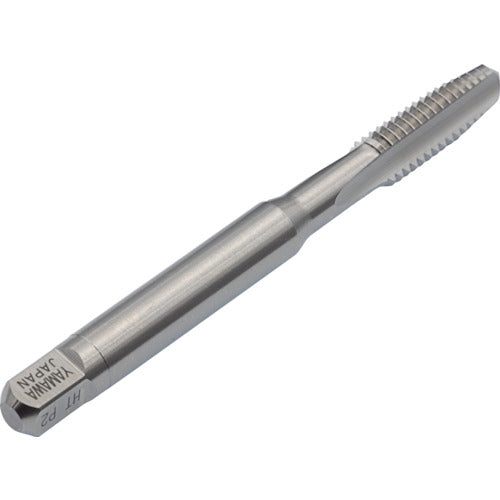

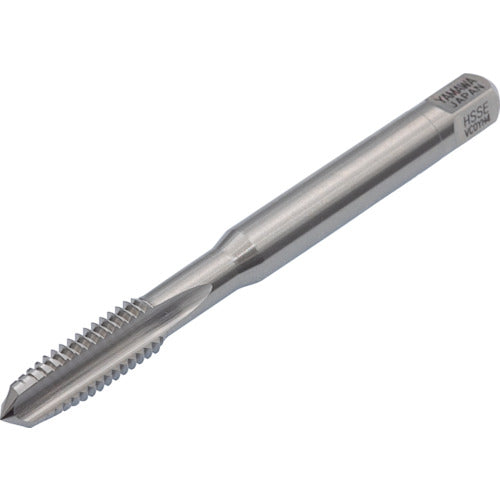

Yamawa Hand Tap HT P3 1/4W20 5P HT-P3-1/4W20-5P 1 piece

Catalog number: HT-P3-1/4W20-5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting material: Medium carbon steel. Specifications: ● Tip: Medium ● Precision: P3 ● Precision notation: P grade ● Nominal dimensions: W1/4 ● Thread length (mm): 15 ● Overall length (mm): 62 ● Shank diameter (mm): 6 ● Shank square section (mm): 4.5 ● Pilot hole diameter (mm): 5.13 ● Number of threads: 20 ● Machined thread: Whitworth thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging threads: 5 Material/Finish: ● High-speed tool steel (HSS)
