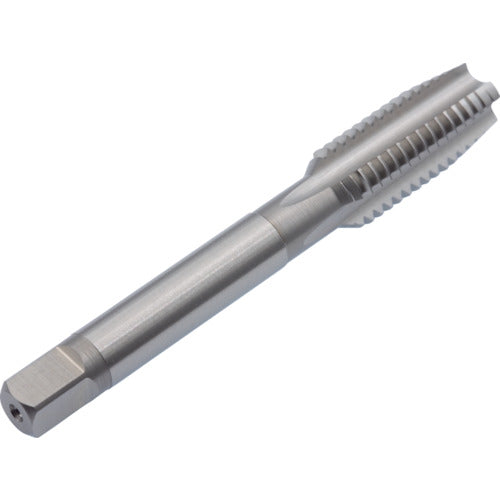

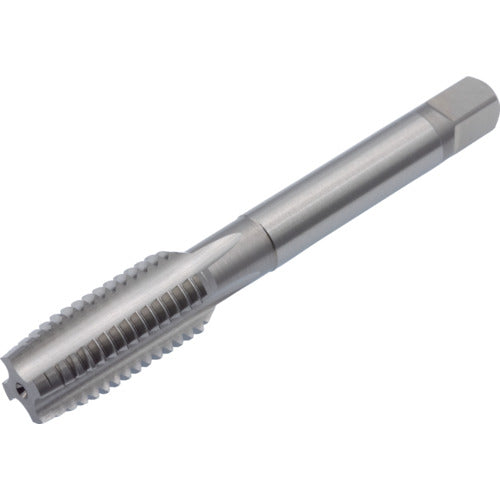

Yamawa Hand Tap HT P4 5/8-11UNC 5P HTP-UNC-5/8-2 1 piece

Catalog number: HTP-UNC-5/8-2 Features: ● Unified thread taps are used in a wide range of applications. Applications: ● Workpiece materials: carbon steel, tool steel, cast steel, cast iron, ductile iron, brass, aluminum alloy castings, zinc alloy castings, tempered steel, brass castings. Specifications: ● Tip: Medium ● Precision: P4 ● Nominal dimensions: UNC5/8 ● Thread length (mm): 26 ● Total length (mm): 95 ● Shank diameter (mm): 12.5 ● Shank square section (mm): 10 ● Pilot hole diameter (mm): 13.8 ● Number of threads: 11 ● Machined threads: Unified threads ● Surface treatment: Non-coated ● Tap grade: P grade Material/Finish: ● High-speed tool steel (HSS)
