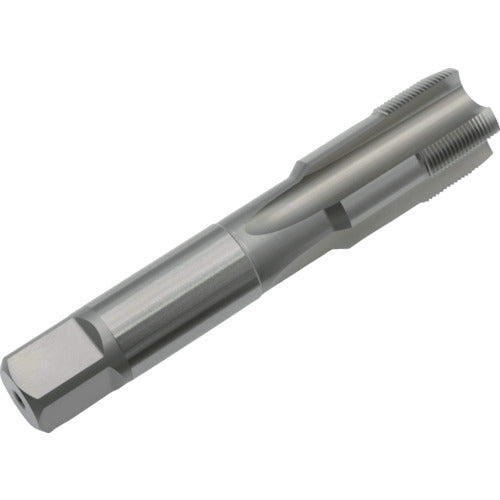

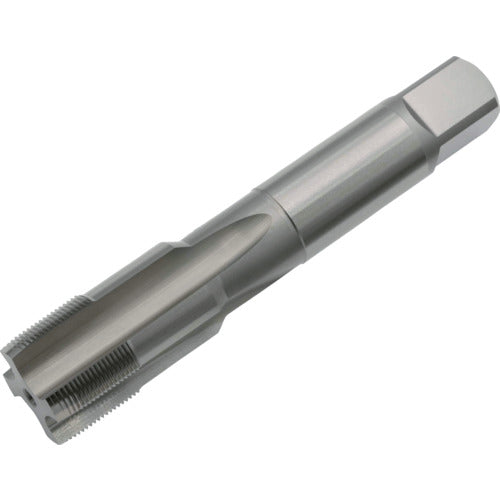

Yamawa Hand Tap HT P4 M46X1.5 5P HT-P4-M46X1.5-5P 1 piece

Catalog number: HT-P4-M46X1.5-5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Medium ● Precision: P4 ● Precision notation: P grade ● Nominal dimensions: M46 ● Pitch (mm): 1.5 ● Thread length (mm): 28 ● Overall length (mm): 185 ● Shank diameter (mm): 38 ● Shank square section (mm): 29 ● Pilot hole diameter (mm): 44.6 ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging teeth: 5 teeth ● Shank length (mm): 85 ● Length of shank square section (mm): 32 Material/Finish: ● High-speed tool steel (HSS)
