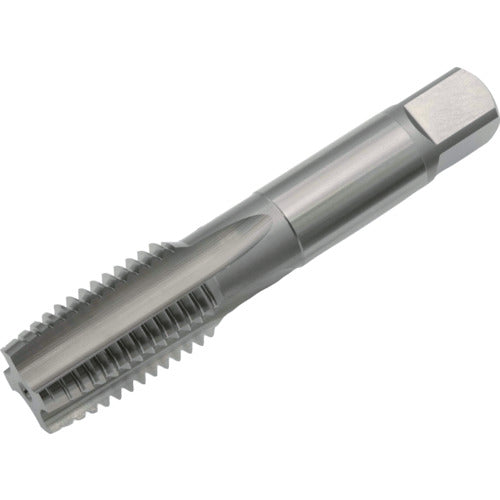

Yamawa Hand Tap HT P5 1W8 5P HT-P5-1W8-5P 1 piece

Catalog number: HT-P5-1W8-5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Medium ● Precision: P5 ● Precision notation: P grade ● Nominal dimensions: W1 ● Thread length (mm): 39 ● Overall length (mm): 125 ● Shank diameter (mm): 19 ● Shank square section (mm): 15 ● Pilot hole diameter (mm): 22.3 ● Number of threads: 8 ● Machined thread: Whitworth thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging threads: 5 ● Shank length (mm): 58 ● Length of shank square section (mm): 18 Material/Finish: ● High-speed tool steel (HSS)
