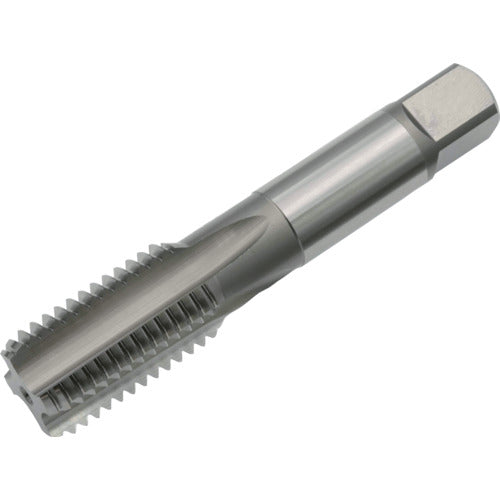

Yamawa Hand Tap HT P5 1-1/2-6UNC 1.5P HT-P5-1-1/2-6UNC-1.5P 1 piece

Catalog number: HT-P5-1-1/2-6UNC-1.5P Features: ● Suitable for cutting materials where the cutting chips are powdery or curl into small pieces. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Top ● Precision: P5 ● Precision notation: P class ● Nominal dimensions: UNC1 1/2 ● Thread length (mm): 52 ● Overall length (mm): 165 ● Shank diameter (mm): 30 ● Shank square section (mm): 23 ● Pilot hole diameter (mm): 34.1 ● Number of threads: 6 ● Machined thread: Unified thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging threads: 1.5P ● Number of engaging threads: 1.5 threads ● Shank length (mm): 76 ● Length of shank square section (mm): 26 Material/Finish: ● High-speed tool steel (HSS)
