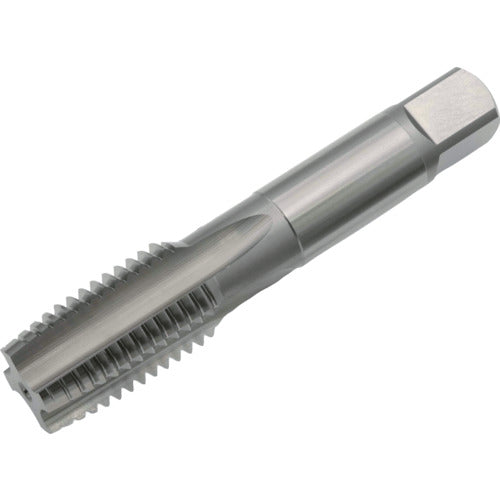

Yamawa Hand Tap HT P5 1-5/8-8UN 5P HT-P5-1-5/8-8UN-5P 1 piece

Catalog number: HT-P5-1-5/8-8UN-5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Medium ● Precision: P5 ● Precision notation: P grade ● Nominal dimensions: UN1-5/8 ● Thread length (mm): 59 ● Overall length (mm): 175 ● Shank diameter (mm): 32 ● Shank square section (mm): 26 ● Pilot hole diameter (mm): 38.3 ● Number of threads: 8 ● Machined thread: Unified thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging threads: 5P ● Number of engaging threads: 5 ● Shank length (mm): 81 ● Length of shank square section (mm): 30 Material/Finish: ● High-speed tool steel (HSS)
