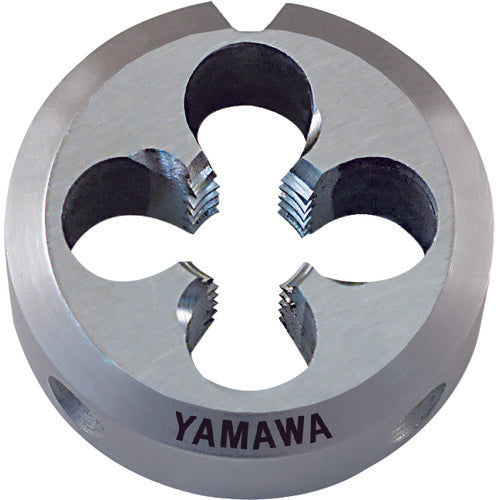

Yamawa Point Solid Die DPO S4 M10X1.5 38 Diameter DPO-S4-M10X1.5-38 1 pc

Catalog number: DPO-S4-M10X1.5-38 Features: ●Due to the effect of the point groove, chips are discharged to the front of the die, reducing chip troubles and enabling continuous machining of high-precision male threads. Applications: ●Workpiece: Brass, light metals. ●For male thread machining. Specifications: ●Nominal size: M10 ●Pitch (mm): 1.5 ●Outer diameter (mm): 38 ●Thickness (mm): 13 ●Accuracy: S4 ●Number of chip holes: 4 ●Number of engagement threads: 1.5 ●Surface treatment: Non-coated Material/Finish: ●High-speed tool steel (HSS) Caution: ●Cannot be used for stainless steel screws.
