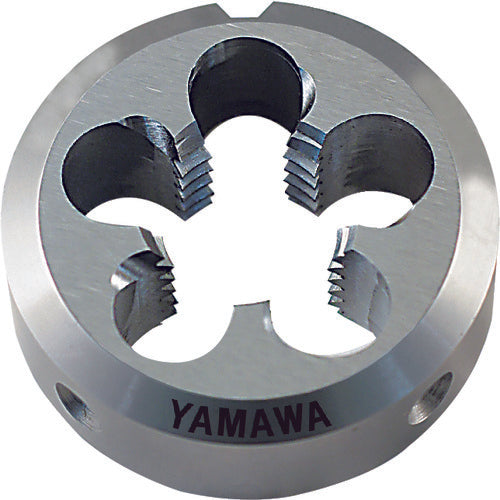

Yamawa Point Solid Die DPO S4 M16X2 50 Diameter DPO-S4-M16X2-50 1 pc

Catalog number: DPO-S4-M16X2-50 Features: ●Due to the effect of the point groove, chips are discharged to the front of the die, reducing chip troubles and enabling continuous machining of high-precision male threads. Applications: ●Workpiece: Brass, light metals. ●For male thread machining. Specifications: ●Nominal size: M16 ●Pitch (mm): 2 ●Outer diameter (mm): 50 ●Thickness (mm): 16 ●Accuracy: S4 ●Number of chip holes: 4 ●Number of engagement threads: 1.5 threads ●Surface treatment: Non-coated Material/Finish: ●High-speed tool steel (HSS) Caution: ●Cannot be used for stainless steel screws.
