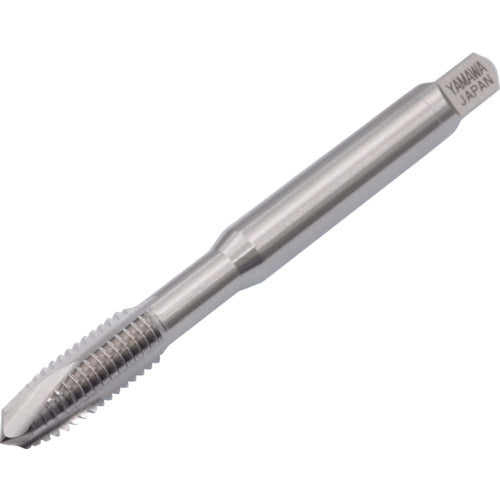

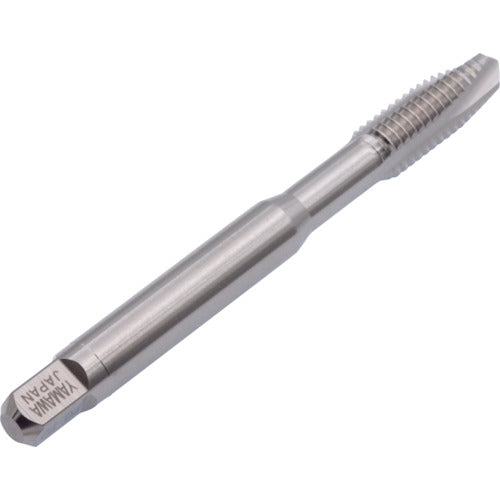

Catalog number: PO-P2-1/8SM44 Features: ●The groove on the cutting edge side of the chamfer is cut at an angle so that the chips are sent forward, making it ideal for through holes without any obstruction caused by chips. ●The straight groove is shallow, so it has high strength. Applications: ●For through hole processing. ●Workpiece: Medium carbon steel. Specifications: ●Accuracy: P2 ●Accuracy notation: P class ●Nominal dimensions: SM1/8 ●Thread length (mm): 11 ●Total length (mm): 52 ●Shank diameter (mm): 5 ●Shank square section (mm): 4 ●Pilot hole diameter (mm): 2.58 ●Number of threads: 44 ●Number of chamfer threads: 5 ●Machining thread: Machine thread ●Surface treatment: Non-coated ●Number of grooves: 3 ●Neck length (mm): 16 Material/Finish: ●High-speed tool steel (HSS)
