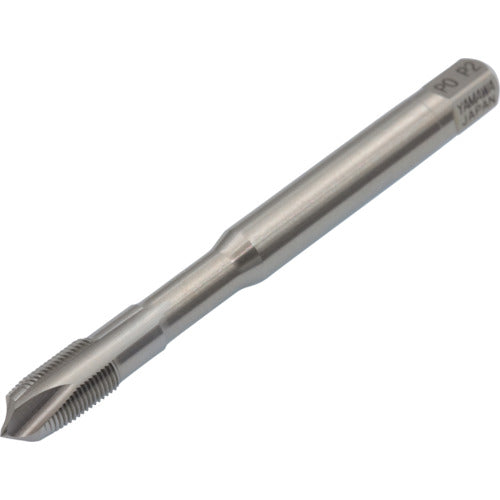

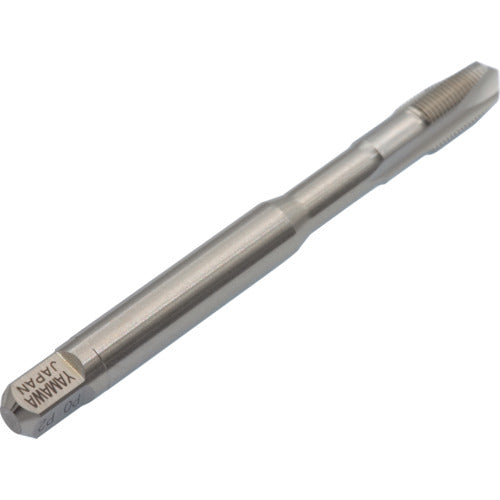

Yamawa Point Tap PO P2 M2.6X0.35 PO-P2-M2.6X0.35 1 piece

Catalog number: PO-P2-M2.6X0.35 Features: ●The groove on the cutting edge side of the chamfer is cut at an angle so that chips are sent forward, making it ideal for through holes without any obstructions caused by chips. ●The straight groove is shallow, so it is strong. Applications: ●For through hole processing. ●Work material: Medium carbon steel, high carbon steel. Specifications: ● Precision: P2 ● Precision notation: P grade ● Nominal size: M2.6 ● Pitch (mm): 0.35 ● Thread length (mm): 6.3 ● Total length (mm): 46 ● Shank diameter (mm): 3 ● Square shank section (mm): 2.5 ● Counterbore diameter (mm): 2.30 ● Number of engagement threads: 5 threads ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Neck length (mm): 14 ● Shank length: 29 mm ● Length of square shank section: 5 mm Material/Finish: ● High-speed tool steel (HSS)
